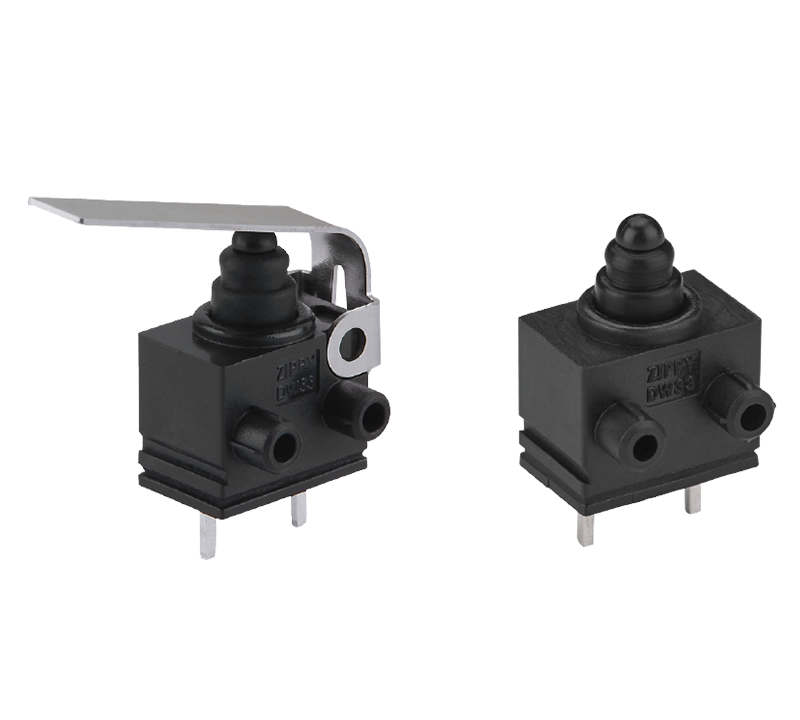

    Sealed Switches Water Proof Switches DW33 series

    DW33 series

    SPECIFICATIONS
    Operating frequency(electrical):
       Max. 120 Operation / mim
    Contact resistance:
       500m Ω(max)
    Insulation resistance(at 500 VDC)
       100M Ω(Min)
    Dielectric strength(50 - 60 Hz)
       Min.500VAC RMS
    Service life(electrical)
        150,000~300,000 Operations
    Degree Of Protection
       IP67 (excluding the terminals on terminal models)
       ※ For IP67 option, please contact your ZIPPY
       sales representative.



    RATING
    50mA 16VDC; 100mA 12VDC; 1mA 5VDC

    APPLICATION
    1. Automobiles
    detection of door opening and closing and shift lever position etc.
    2. Household appliances
    propane stoves, vacuum cleaners, washing machines, air conditioners etc.



    DIMENSIONS
    DW33-dim_30

    CONTACT CONFIGURATION
    DW33-cont_500

    ORDER INFORMATION
    DW33-orde_110

    TERMINAL TYPES
    DW33-term_150

    OPERATING CHARACTERISTICS
    DW33-oper_250
