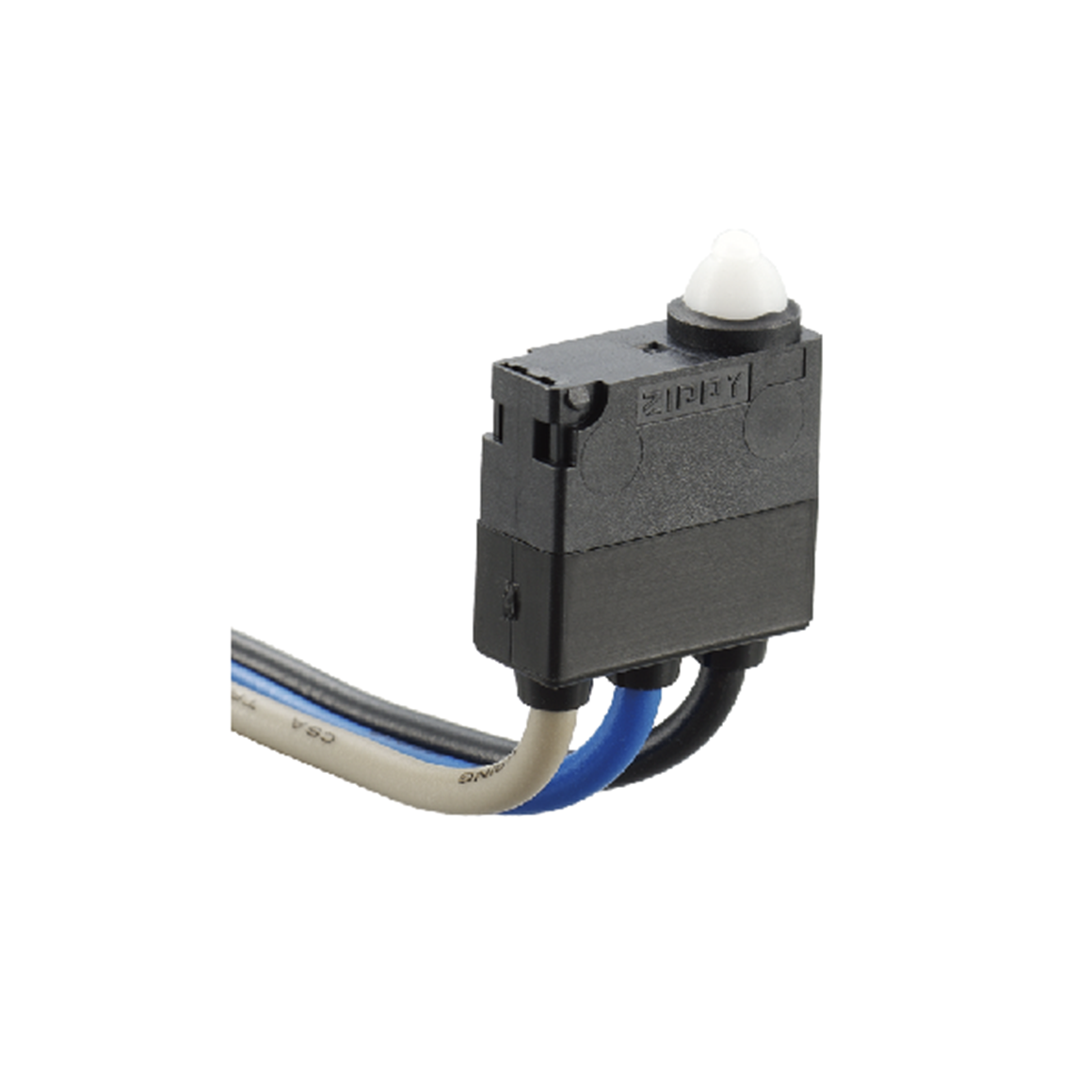

    Sealed Water Proof Switches (DW2(IP67) Series)

    DW2(IP67) Series

    Specifications
    Operating frequency(mechanical):
       120 Operation / mim
    Operating frequency(electrical):
       3A - 10~30 Operation / mim
    Contact resistance:
       100m Ω(max)
    Insulation resistance(at 500 VDC)
       100M Ω(Min)
    Service life(mechanical)
       Min. 1,000,000 Operations
    Service life(electrical)
       3A- Min.10,000 Operations

    Rating
    0.1A/3A 125/250VAC;10mA/3A 12VDC
    Application
    1. Industrial and automotive applications
    detection of door opening and closing and shift lever position etc.
    2. Household appliances
    propane stoves, vacuum cleaners, washing machines, air conditioners etc.


    Dimensions

    Unless otherwisespecitied, a tolerance of ±0.4mm applies to all dimensions.


    sealed-water-proof-switches-dw2-ip67-series







    Order Information
    sealed-water-proof-switches-dw2-ip67-series
