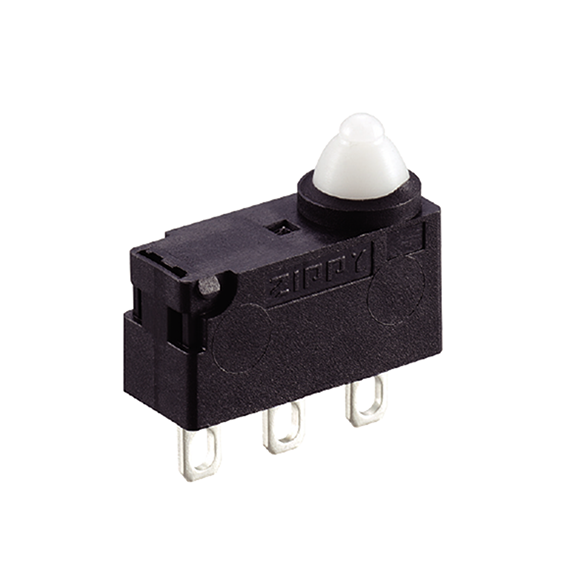

DW2 Series
Specifications
Operating frequency(mechanical):
120 Operation / mim
Operating frequency(electrical):
3A - 10~30 Operation / mim
Contact resistance:
100m Ω(max)
Insulation resistance(at 500 VDC)
100M Ω(Min)
Service life(mechanical)
Min. 1,000,000 Operations
Service life(electrical)
3A Min.10,000 Operations
Degree Of Protection
IP67 (excluding the terminals on terminal models)
※ For IP67 option, please contact your ZIPPY
sales representative.
Rating
0.1A/3A 125/250VAC;10mA/3A 12VDC
Application
1. Industrial and automotive applications
detection of door opening and closing and shift lever position etc.
2. Household appliances
propane stoves, vacuum cleaners, washing machines, air conditioners etc.
シール形基本スイッチ D2HW
Dimensions
Unless otherwise specitied, a tolerance of ±0.4mm applies to all dimensions.
Specifications
Operating frequency(mechanical):
120 Operation / mim
Operating frequency(electrical):
3A - 10~30 Operation / mim
Contact resistance:
100m Ω(max)
Insulation resistance(at 500 VDC)
100M Ω(Min)
Service life(mechanical)
Min. 1,000,000 Operations
Service life(electrical)
3A Min.10,000 Operations
Degree Of Protection
IP67 (excluding the terminals on terminal models)
※ For IP67 option, please contact your ZIPPY
sales representative.
Rating
0.1A/3A 125/250VAC;10mA/3A 12VDC
Application
1. Industrial and automotive applications
detection of door opening and closing and shift lever position etc.
2. Household appliances
propane stoves, vacuum cleaners, washing machines, air conditioners etc.
シール形基本スイッチ D2HW
Dimensions
Unless otherwise specitied, a tolerance of ±0.4mm applies to all dimensions.
Contact Configuration
Order Information
Terminal Types
Operating Characteristics
