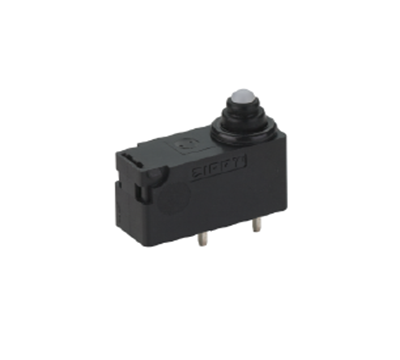

    Sealed Water Proof Switches (DW52 series)


    DW52 series

    Specifications
    Operating frequency(mechanical):
       120 Operation / mim
    Operating frequency(electrical):
       10~30 Operation / mim
    Contact resistance:
       100m Ω(max)
    Insulation resistance(at 500 VDC)
       100M Ω(Min)
    Service life(mechanical)
       Min. 500,000 Operations
    Degree Of Protection
       IP67 (excluding the terminals on terminal models)
       ※ For IP67 option, please contact your ZIPPY
       sales representative.

    Rating
    0.1A/3A 125V;0.1A/3A 12VDC
    Application
    1. Industrial and automotive applications
    detection of door opening and closing and shift lever position etc.
    2. Household appliances
    propane stoves, vacuum cleaners, washing machines, air conditioners etc.
    3. Security system

    Dimensions
    Unless otherwise specitied, a tolerance of ±0.4mm applies to all dimensions.
     sealed-water-proof-switches-dw52-series






     Order Information
     sealed-water-proof-switches-dw52-series









    Terminal Types
     sealed-water-proof-switches-dw52-series





    Operating Characteristics
     sealed-water-proof-switches-dw52-series
