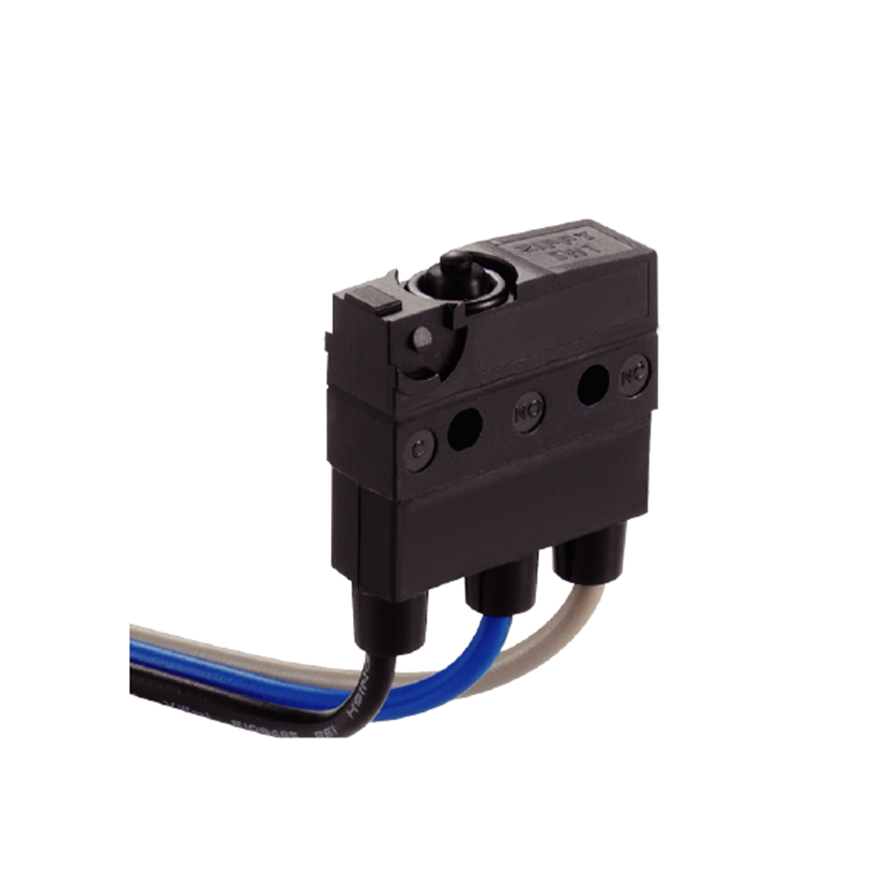

    Sealed Water Proof Switches (SW1(IP67) Series)


    SW1(IP67) Series

    Specifications
    Operating frequency(mechanical):
       120 Operation / mim
    Operating frequency(electrical):
       10~30 Operation / mim
    Contact resistance:
       300m Ω(max)
    Insulation resistance(at 500 VDC)
       100M Ω(Min)
    Service life(mechanical)
       min.2,000,000 Operations
    Service life(electrical)
       Min.10,000 Operations

    Rating
    0.1A/6A/10A/12A 125/250VAC ; 0.1A/5A 30VDC
    Application
    Drives for beds, tables and roller shutters
    Servo drives
    Power tools
    Recreational equipment
    Vacuum cleaners
    Small household appliances
    Vending machines
    Medical devices
    HVAC technology
    Automotive applications

    Dimensions
    Unless otherwise specitied, a tolerance of ±0.4mm applies to all dimensions.
    sealed-water-proof-switches-sw1-ip67-series








    Operating Force
    sealed-water-proof-switches-sw1-ip67-series





    Order Information
     sealed-water-proof-switches-sw1-ip67-series
