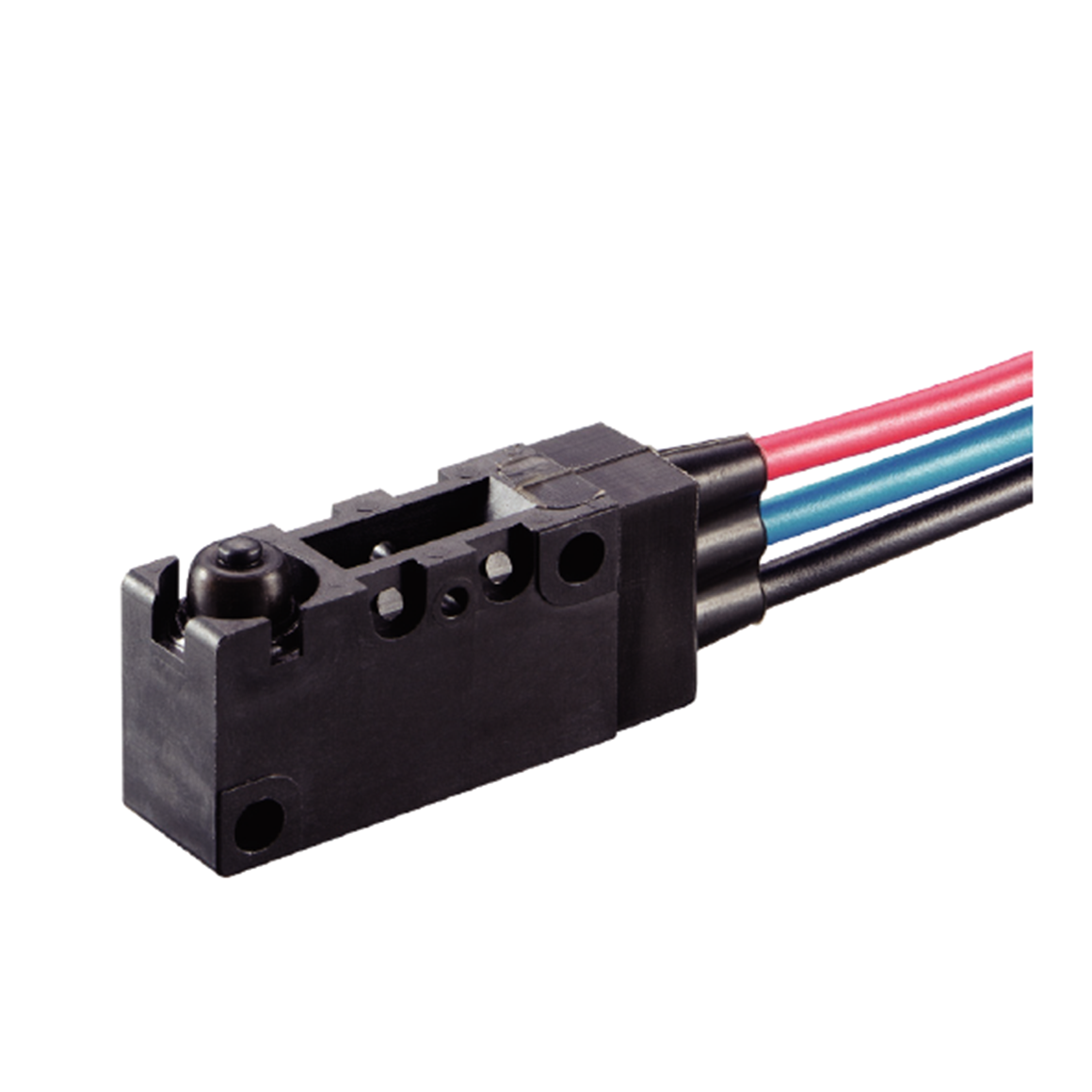

VW1(IP67) Series
Specifications
Operating frequency(mechanical):
120 Operation / mim
Operating frequency(electrical):
10~30 Operation / mim
Contact resistance:
300m Ω(max)
Insulation resistance(at 500 VDC)
100M Ω(Min)
Service life(mechanical)
Min. 1,000,000 Operations
Service life(electrical)
in. 10,000 Operations
Rating
0.1A/3A/6A/10A 125/250VAC ; 0.1A/3A/5A 30VDC
Application
Industrial equipment
Aautomotive applications
Agricultural machines
Household appliances
Specifications
Operating frequency(mechanical):
120 Operation / mim
Operating frequency(electrical):
10~30 Operation / mim
Contact resistance:
300m Ω(max)
Insulation resistance(at 500 VDC)
100M Ω(Min)
Service life(mechanical)
Min. 1,000,000 Operations
Service life(electrical)
in. 10,000 Operations
Rating
0.1A/3A/6A/10A 125/250VAC ; 0.1A/3A/5A 30VDC
Application
Industrial equipment
Aautomotive applications
Agricultural machines
Household appliances
Dimensions
Unless otherwisespecitied, a tolerance of ±0.4mm applies to all dimensions.
Contact Configuration
Operating Force
Order Information
Terminal Types
