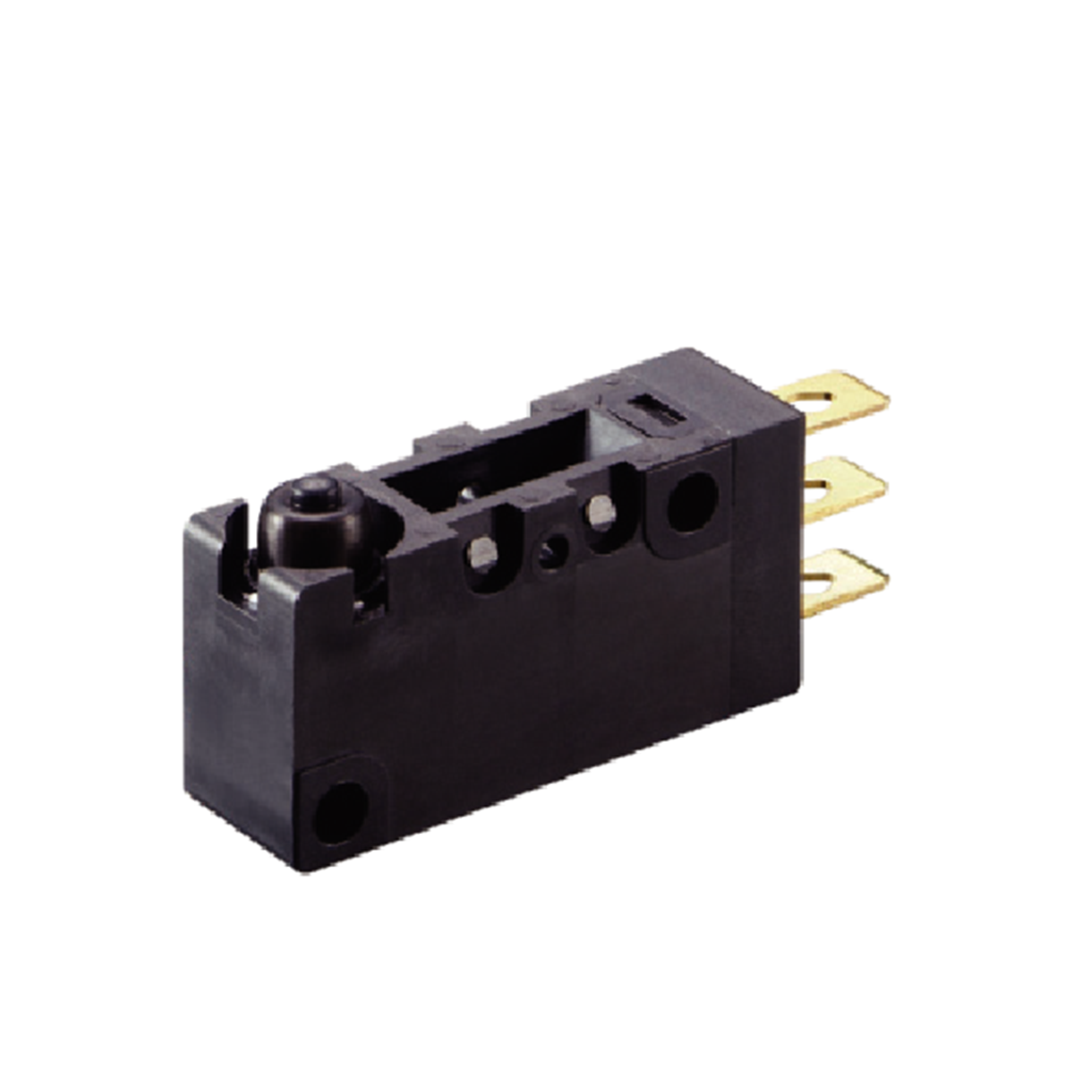

    Sealed Water Proof Switches (VW1 Series)

    VW1 Series

    Specifications
    Operating frequency(mechanical):
       120 Operation / mim
    Operating frequency(electrical):
       10~30 Operation / mim
    Contact resistance:
       300m Ω(max)
    Insulation resistance(at 500 VDC)
       100M Ω(Min)
    Service life(mechanical)
       Min. 1,000,0000 Operations
    Service life(electrical)
       Min. 10,000 Operations

    Rating
    0.1A/3A/6A/10A 125/250VAC ; 0.1A/3A/5A 30VDC
    Application
    Industrial equipment
    Aautomotive applications
    Agricultural machines
    Household appliances

    Dimensions

    Unless otherwisespecitied, a tolerance of ±0.4mm applies to all dimensions.


    sealed-water-proof-switches-vw1-series







    Contact Configuration
    sealed-water-proof-switches-vw1-series



    Operating Force
    sealed-water-proof-switches-vw1-series






    Order Information
    sealed-water-proof-switches-vw1-series









    Terminal Types
    sealed-water-proof-switches-vw1-series








    Operating Characteristics
    sealed-water-proof-switches-vw1-series
