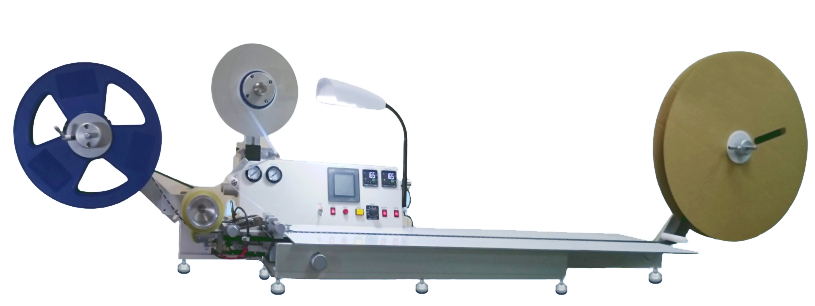

Extended Semi-Automatic Tape and Reel Taping/Packaging Machine (4-Operator Model)

Carrier Tape Width

8 mm – 72 mm (Precision adjustable with screw-synchronous track mechanism)

Sealing Tape

Self-adhesive and heat-sealed compatible

Temperature Control

Microcomputer control; individually adjustable for each sealing head

Heat-Sealing Heads

Two sets of heat-sealing push broaches, independent temperature & pressure control

Counting Method

Encoder-based counting

Inspection (Optional)

CCD inspection for components, missing parts, or reverse placement

Interface

Touch panel for parameter setup

Adjustment Mechanism

Positioning modules for quick fine-tuning

Packing Speed

Adjustable

Feeder Compatibility

Packing reels: Ø180 mm – Ø550 mm

Input Voltage

Single-phase 220 VAC, 50/60 Hz

Air Pressure

5.0 kg/cm²

Sealing Speed

Self-adhesive: up to 52 mm/sec; Heat-sealed: up to 36 mm/sec

Machine Size (Standard)

850 mm (L) × 450 mm (W) × 600 mm (H)

Extended Size (Unfolded)

1350 mm (L) × 450 mm (W) × 600 mm (H)

Machine Weight

45 kg
