Sensor
Specifications
|
Model |

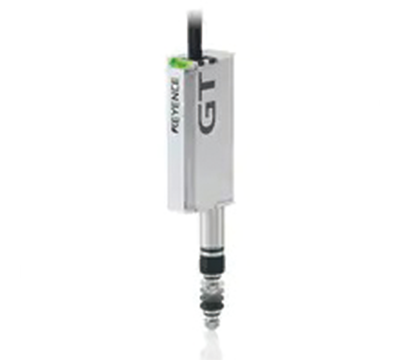

GT-H10 |
|||
|
Type |
Sensor head: Standard |
|||
|
Measuring range |
10 mm 0.39" |
|||
|
Measuring force |
Downward mounting |
1.0 N*1 |
||
|
Side mounting |
0.9 N*1 |
|||
|
Upward mounting |
0.8 N*1 |
|||
|
Mechanical response |
10 Hz (at ambient temperature of 23 °C 73 °F) |
|||
|
Repeatability |
3 µm 0.00012" (at ambient temperature of 23 °C 73 °F)*2 |
|||
|
Environmental resistance |
Enclosure rating |
IP67 |
||
|
Ambient temperature |
-10 to +55 °C 14 to 131 °F |
|||
|
Relative humidity |
35 to 85 % RH |
|||
|
Material |
Housing: TYPE430 Stainless steel, Indicator: Polyarylate, |
|||
|
Weight |
Approx. 115 g (With 2-m 6.6' cable) |
|||
|
*1 Value read near the center of the measuring range |
||||
