    Sensor

    Sensor Head

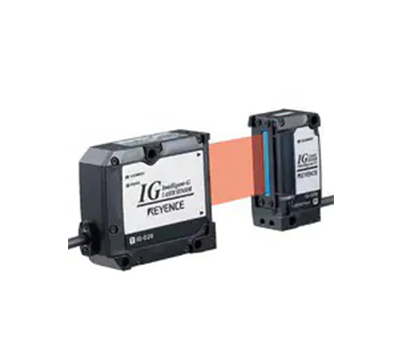

    Model No.:Keyence IG-028

    Specifications


    Model

    IG-028

    Operation principle

    CCD method

    Light source

    Wavelength

    660 nm (Visible light semiconductor laser)

    FDA

    Class 1*1

    IEC/JIS

    Class 1

    Mounting distance

    0 to 1500 mm 59.06"

    Measurement range

    28 mm 1.10"

    Sampling cycle

    980 µs (When the number of times for averaging is set to [hsp]: 490 µs)

    Minimum detectable object

    High sensitivity mode

    ø0.1 mm ø0.003" (Setting distance: 100 mm 3.94")*2

    Standard mode

    ø0.2 mm ø0.007" (Setting distance: 50 mm 1.97" or less),
    ø0.5 mm ø0.02" (Setting distance: 500 mm 19.68")*2

    Repeatability

    5 µm 0.20 Mil (Setting distance: 100 mm 3.94")
    10 µm 0.39 Mil (Setting distance: 500 mm 19.68")
    80 µm 3.15 Mil (Setting distance: 1,000 mm 39.37")
    140 µm 5.51 Mil (Setting distance: 1,500 mm 59.06")*3

    Linearity

    ±0.1 % of F.S. (±28 µm ±1.10 Mil)*4

    Temperature characteristics

    ±0.01 % of F.S./°C (±3 µm ±0.12 Mil/°C)*5

    Operation indicator

    Transmitter

    Optical axis alignment indicator: Green LED, Power indicator: Green LED

    Receiver

    Optical axis alignment indicator: Green LED, Position monitor: Dual bar LED (Red, Green)

    Environmental resistance

    Enclosure rating

    IP67

    Ambient light

    Incandescent lamp: 5,000 lux, Sunlight: 5,000 lux*6

    Ambient temperature

    -10 to +45 °C 14 to 113 °F (No freezing)

    Relative humidity

    35 to 85 % RH (No condensation)

    Vibration resistance

    10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z axis

    Material

    Case

    Zinc die-cast (Lower case), PBT (Upper case), Polyarylate (PAR) (Display part), SUS304 (Metallic part)

    Lens cover

    Glass

    Cable

    PVC

    Accessories

    Transmitter × 1, Receiver × 1, Sensor head cables (2 m 6.56') × 2

    Weight

    Approx. 500 g (including supplied items)

    *1 The classification for FDA (CDRH) is implemented based on IEC60825-1 in accordance with the requirements of Laser Notice No.50.
    *2 When the measurement target object is measured at the center position of the setting distance. When the measurement mode is set to the glass edge mode, a glass edge of C0.1 mm 0.003" or more can be detected (Setting distance: 500 mm 19.69").
    *3 When the light is shielded by half at the center position of the setting distance. Vibration width when the average number of times is set to 16 and sampling is performed for 30 seconds. (When the analog output is used, the margin of error of analog output is added.)
    *4 When the setting distance is 100 mm 3.94" and light is shielded at 50 mm 1.96"position from the receiver. Margin of error to the ideal line.
    *5 When the setting distance is 100 mm 3.94" and light is shielded by half at 50 mm 1.96" position from the receiver.
    *6 Excluding when the average number of times is set to [hsp].
