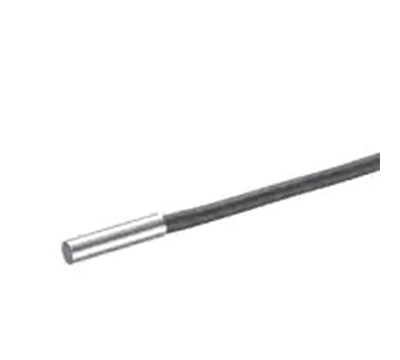

Sensor
Specifications
|
Model |
EH-302 |
|||
|
Type |
Standard , Shielded , Cylindrical |
|||
|
Detectable object |
Ferrous metals (see Characteristics for nonferrous metals) |
|||
|
Standard target (iron, t=1 mm 0.04") |
5 x 5 mm0.02" |
|||
|
Stable detecting range |
0 to 0.6 mm0.02" |
|||
|
Maximum detecting distance |
1.2 mm0.05" |
|||
|
Hysteresis |
0.04 mm0.002" |
|||
|
Repeatability |
0.002 mm0.00008" |
|||
|
Temperature characteristics |
-10 to +20% max. of detecting distance at 23°C 73.4°F, within -10 to +60°C 14 to 140°F |
|||
|
Environmental resistance |
Enclosure rating |
IP67 |
||
|
Ambient temperature |
-10 to +60 °C 14 to 140 °F (No freezing) |
|||
|
Relative humidity |
35 to 85 % RH (No condensation) |
|||
|
Weight |
Approx. 29 g (including nuts and 3-m 9.8' cable) |
|||
