    Sensor

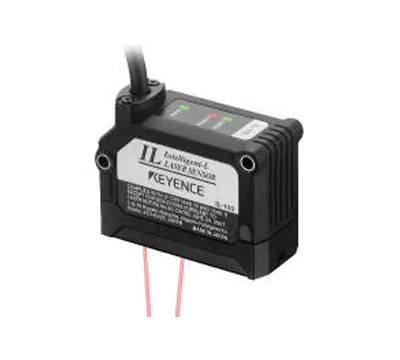

    Sensor Heads Keyence IL-065

    *1 The laser classification for FDA (CDRH) is implemented based on IEC 60825-1 in accordance with the requirements of Laser Notice No.50.
    *2 Value when measuring the KEYENCE standard target (white diffuse object).
    *3 F.S. of each model is as follows. IL-030: ±5 mm ±0.20" IL-065: ±10 mm ±0.39" IL-100: ±20 mm ±0.79" IL-300: ±140 mm ±5.51" IL-600: ±400 mm ±15.75" IL-2000: +1000 to -1500 mm 39.37" to -59.05"
    *4 Value when measuring the KEYENCE standard target (white diffuse object) at the reference distance, sampling rate: 1 ms, and average number of times: 128. For the IL-300/IL-600, the sampling rate is 2 ms. For the IL-2000, the sampling rate is set to 5ms.
    *5 F.S. of each model is as follows. IL-030: ±5 mm ±0.20" IL-065: ±10 mm ±0.39" IL-100: ±20 mm ±0.79" IL-300: ±140 mm ±5.51" IL-600: ±400 mm ±15.75"
    *6 Value when the sampling rate is set to 2 ms or 5 ms.
    Sensor Heads Keyence IL-065

    Model

    IL-065

    Reference distance

    65 mm 2.56"

    Measurement range

    55 to 105 mm 2.17" to 4.13"

    Light source

    Type

    Red semiconductor laser, wavelength: 655 nm (visible light)

    Laser class

    Class 2 (FDA (CDRH) Part1040.10)*1
    Class 2 (IEC 60825-1)

    Output

    560 µW

    Spot diameter (at standard distance)

    Approx. 550 × 1750 µm

    Linearity

    ±0.1% of F.S. (55 to 75 mm 2.17" to 2.95")*2*3

    Repeatability

    2 µm*4

    Sampling rate

    0.33/1/2/5 ms (4 levels available)

    Operation status indicators

    Laser emission warning indicator: Green LED, Analog range indicator: Orange LED, Reference distance indicator: Red/Green LED

    Temperature characteristics

    0.06% of F.S./°C*5

    Environmental resistance

    Enclosure rating

    IP67

    Pollution degree

    3

    Ambient light

    Incandescent lamp: 7,500 lux*6

    Ambient temperature

    -10 to +50 °C 14 to 122 °F (No condensation or freezing)

    Relative humidity

    35 to 85 % RH (No condensation)

    Vibration resistance

    10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions

    Material

    Housing material: PBT, Metal parts: SUS304, Packing: NBR, Lens cover: Glass, Cable: PVC

    Weight

    Approx. 75 g

    *1 The laser classification for FDA (CDRH) is implemented based on IEC 60825-1 in accordance with the requirements of Laser Notice No.50.
    *2 Value when measuring the KEYENCE standard target (white diffuse object).
    *3 F.S. of each model is as follows. IL-030: ±5 mm ±0.20" IL-065: ±10 mm ±0.39" IL-100: ±20 mm ±0.79" IL-300: ±140 mm ±5.51" IL-600: ±400 mm ±15.75" IL-2000: +1000 to -1500 mm 39.37" to -59.05"
    *4 Value when measuring the KEYENCE standard target (white diffuse object) at the reference distance, sampling rate: 1 ms, and average number of times: 128. For the IL-300/IL-600, the sampling rate is 2 ms. For the IL-2000, the sampling rate is set to 5ms.
    *5 F.S. of each model is as follows. IL-030: ±5 mm ±0.20" IL-065: ±10 mm ±0.39" IL-100: ±20 mm ±0.79" IL-300: ±140 mm ±5.51" IL-600: ±400 mm ±15.75"
    *6 Value when the sampling rate is set to 2 ms or 5 ms.
