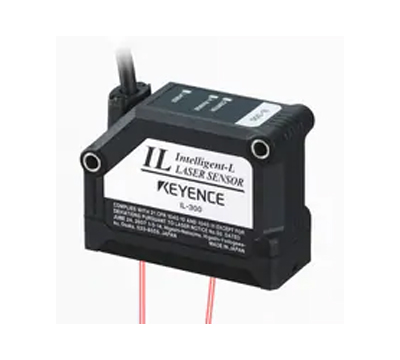

Sensor Heads Keyence IL-300
*2 Value when measuring the KEYENCE standard target (white diffuse object).
*3 F.S. of each model is as follows. IL-030: ±5 mm ±0.20" IL-065: ±10 mm ±0.39" IL-100: ±20 mm ±0.79" IL-300: ±140 mm ±5.51" IL-600: ±400 mm ±15.75" IL-2000: +1000 to -1500 mm 39.37" to -59.05"
*4 Value when measuring the KEYENCE standard target (white diffuse object) at the reference distance, sampling rate: 1 ms, and average number of times: 128. For the IL-300/IL-600, the sampling rate is 2 ms. For the IL-2000, the sampling rate is set to 5ms.
*5 F.S. of each model is as follows. IL-030: ±5 mm ±0.20" IL-065: ±10 mm ±0.39" IL-100: ±20 mm ±0.79" IL-300: ±140 mm ±5.51" IL-600: ±400 mm ±15.75"
*6 Value when the sampling rate is set to 2 ms or 5 ms.
|
Model |
IL-300 |
|||
|
Reference distance |
300 mm 11.81" |
|||
|
Measurement range |
160 to 450 mm 6.30" to 17.72" |
|||
|
Light source |
Type |
Red semiconductor laser, wavelength: 655 nm (visible light) |
||
|
Laser class |
Class 2 (FDA (CDRH) Part1040.10)*1 |
|||
|
Output |
560 µW |
|||
|
Spot diameter (at standard distance) |
Approx. ø0.5 mm ø0.02" |
|||
|
Linearity |
±0.25% of F.S. (160 to 440 mm 6.30" to 17.32")*2*3 |
|||
|
Repeatability |
30 µm*4 |
|||
|
Sampling rate |
0.33/1/2/5 ms (4 levels available) |
|||
|
Operation status indicators |
Laser emission warning indicator: Green LED, Analog range indicator: Orange LED, Reference distance indicator: Red/Green LED |
|||
|
Temperature characteristics |
0.08% of F.S./°C*5 |
|||
|
Environmental resistance |
Enclosure rating |
IP67 |
||
|
Pollution degree |
3 |
|||
|
Ambient light |
Incandescent lamp: 5,000 lux*6 |
|||
|
Ambient temperature |
-10 to +50 °C 14 to 122 °F (No condensation or freezing) |
|||
|
Relative humidity |
35 to 85 % RH (No condensation) |
|||
|
Vibration resistance |
10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions |
|||
|
Material |
Housing material: PBT, Metal parts: SUS304, Packing: NBR, Lens cover: Glass, Cable: PVC |
|||
|
Weight |
Approx. 135 g |
|||
|
*1 The laser classification for FDA (CDRH) is implemented based on IEC 60825-1 in accordance with the requirements of Laser Notice No.50. |
||||
