    Sensor

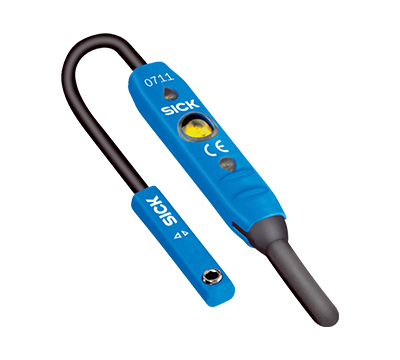

    Sensors for C-slot cylindersMZ2Q-C

    Type:MZ2Q-CSSPSKUAS05
    Part No.:1051588

    Features
    Cylinder type C-slot
    Preferred manufacturer slot

    SMC

    Bimba

    Schunk

    Detection zone 0 mm ... 50 mm
    Cylinder types with adapter

    SMC rail ECDQ2

    SMC rail CDQ2

    Housing length 19.5 mm
    Switching output 2 x PNP
    Output function NO
    Electrical wiring DC 4-wire
    Teach-in
    Enclosure rating IP67 1)
    Adjustment
    Teach-in control panel Teaching in switching points 1 and 2
    • 1) According to EN 60529.

    Mechanics/electronics
    Detection zone 0 mm ... 50 mm
    Supply voltage 12 V DC ... 30 V DC
    Power consumption Typ. 25 mA, without load
    Voltage drop ≤ 2.2 V
    Continuous current Ia ≤ 100 mA
    Protection class III
    For SMC cylinders
    Hysteresis, typ. 1 mT
    Reproducibility ≤ 0.1 mT 1)
    Reverse polarity protection
    Short-circuit protection
    Power-up pulse protection
    Ambient operating temperature –20 °C ... +75 °C
    Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
    EMC According to EN 60947-5-2
    Connection type Cable, 4-wire, 3 m
    Connection type Detail
    Conductor cross-section 0.08 mm²
    Cable diameter Ø 2.6 mm
    Bending radius With fixed installation > 5 x cable diameter
      For flexible use > 10 x cable diameter
    Cable outlet Axial
    Material
    Housing Plastic
    Cable PUR
    UL File No. NRKH.E181493 & NRKH7.E181493
    • 1) Ub and Ta constant.

    Safety-related parameters
    MTTFD 799 years
    DCavg 0%
    TM (mission time) 20 years

    Classifications
    ECl@ss 5.0 27270104
    ECl@ss 5.1.4 27270104
    ECl@ss 6.0 27270104
    ECl@ss 6.2 27270104
    ECl@ss 7.0 27270104
    ECl@ss 8.0 27270104
    ECl@ss 8.1 27270104
    ECl@ss 9.0 27270104
    ECl@ss 10.0 27270104
    ECl@ss 11.0 27270104
    ETIM 5.0 EC002544
    ETIM 6.0 EC002544
    ETIM 7.0 EC002544
    ETIM 8.0 EC002544
    UNSPSC 16.0901 39122230
