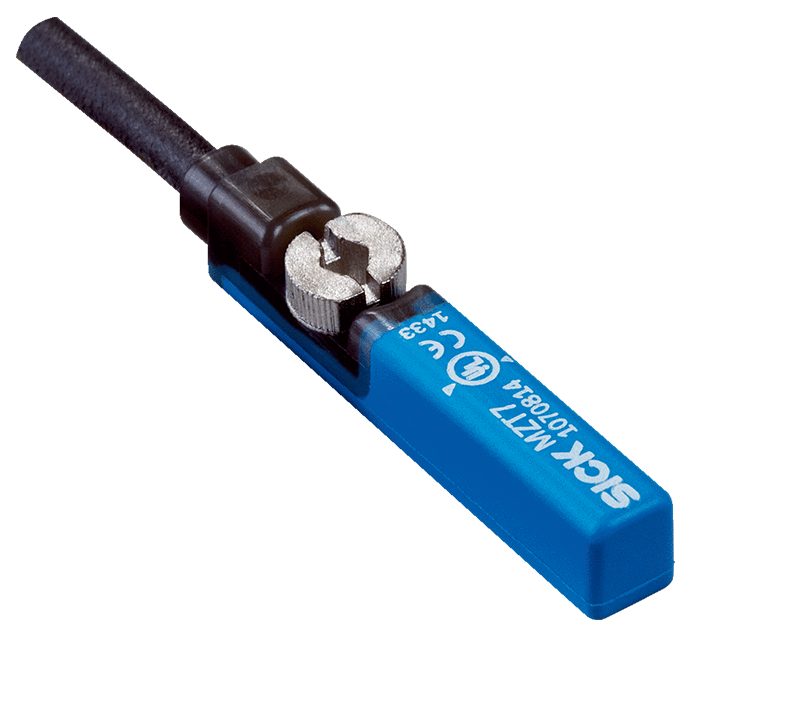

    Sensors for T-slot cylindersMZT7

    Type:MZT7-03VNS-KU0
    Part No.:1070831

    Features
    Cylinder type T-slot
    Cylinder types with adapter

    Profile cylinder

    Tie rod cylinder

    Round body cylinder

    Dovetail groove cylinder

    SMC rail CDQ2

    SMC rail ECDQ2

    Housing length 29.5 mm
    Switching output NPN
    Switching frequency 1,000 Hz
    Output function NO
    Electrical wiring DC 3-wire
    Enclosure rating

    IP65 1)

    IP67

    • 1) According to EN 60529.

    Mechanics/electronics
    Supply voltage 10 V DC ... 30 V DC
    Power consumption 8 mA, without load
    Voltage drop ≤ 2 V
    Continuous current Ia ≤ 100 mA
    Protection class III
    Response sensitivity, typ. 3 mT
    Overrun distance, typ. 10 mm
    Hysteresis, typ. < 0.8 mT
    Reproducibility ≤ 0.1 mT 1)
    Status indicator LED
    Reverse polarity protection
    Short-circuit protection
    Ambient operating temperature –30 °C ... +80 °C
    Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
    EMC According to EN 60947-5-2
    Connection type Cable, 3-wire, drag chain use, 2 m
    Connection type Detail
    Conductor cross-section 0.14 mm²
    Cable diameter Ø 2.9 mm
    Bending radius With fixed installation > 3 x cable diameter
      For flexible use > 10 x cable diameter
    Torsion force ± 270° / 10 cm
    Torsion cycles > 2,000,000
    Drag chain cycles > 2,000,000
    Drag chain parameters Traversing speed max. 3.3 m/s at 5 m horizontal traversing length
      Acceleration max. 5 m/s²
    Cable outlet Axial
    Material
    Housing Plastic
    Cable PUR
    UL File No. NRKH.E181493 & NRKH7.E181493
    • 1) Ub and Ta constant.

    Safety-related parameters
    MTTFD 1,300 years
    DCavg 0 %
    TM (mission time) 20 years

    Classifications
    ECl@ss 5.0 27270104
    ECl@ss 5.1.4 27270104
    ECl@ss 6.0 27270104
    ECl@ss 6.2 27270104
    ECl@ss 7.0 27270104
    ECl@ss 8.0 27270104
    ECl@ss 8.1 27270104
    ECl@ss 9.0 27270104
    ECl@ss 10.0 27270104
    ECl@ss 11.0 27270104
    ECl@ss 12.0 27274301
    ETIM 5.0 EC002544
    ETIM 6.0 EC002544
    ETIM 7.0 EC002544
    ETIM 8.0 EC002544
    UNSPSC 16.0901 39122230
