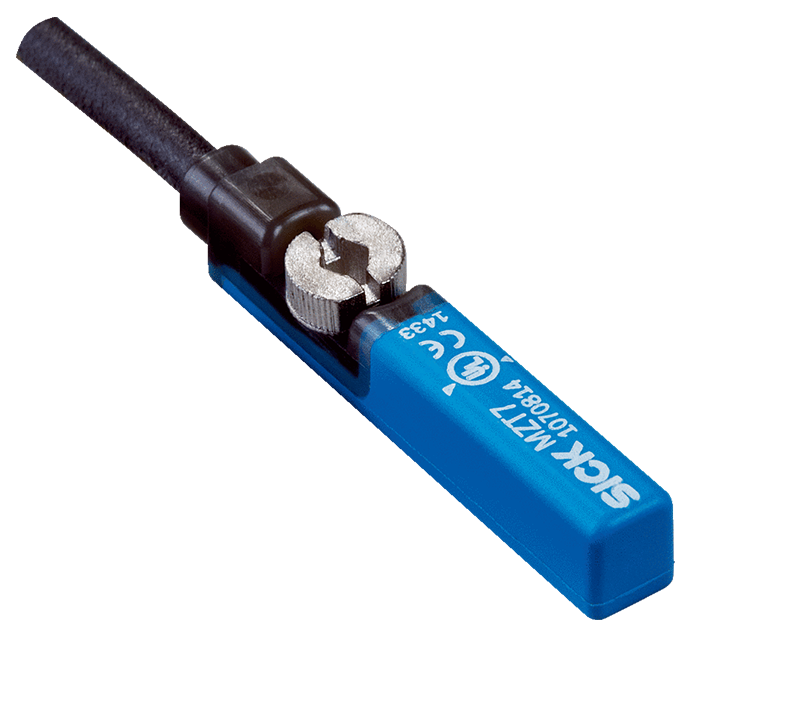

Sensor
Features
Mechanics/electronics
Safety-related parameters
Classifications
| Cylinder type | T-slot |
| Cylinder types with adapter |
Profile cylinder Tie rod cylinder Round body cylinder Dovetail groove cylinder SMC rail CDQ2 SMC rail ECDQ2 |
| Housing length | 29.5 mm |
| Switching output | NPN |
| Switching frequency | 1,000 Hz |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating |
IP65 1) IP67 |
- 1) According to EN 60529.
Mechanics/electronics
| Supply voltage | 10 V DC ... 30 V DC | ||||||||||||
| Power consumption | 8 mA, without load | ||||||||||||
| Voltage drop | ≤ 2 V | ||||||||||||
| Continuous current Ia | ≤ 100 mA | ||||||||||||
| Protection class | III | ||||||||||||
| Response sensitivity, typ. | 3 mT | ||||||||||||
| Overrun distance, typ. | 10 mm | ||||||||||||
| Hysteresis, typ. | < 0.8 mT | ||||||||||||
| Reproducibility | ≤ 0.1 mT 1) | ||||||||||||
| Status indicator LED | ✔ | ||||||||||||
| Reverse polarity protection | ✔ | ||||||||||||
| Short-circuit protection | ✔ | ||||||||||||
| Ambient operating temperature | –30 °C ... +70 °C | ||||||||||||
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm | ||||||||||||
| EMC | According to EN 60947-5-2 | ||||||||||||
| Connection type | Cable, 3-wire, 2 m | ||||||||||||
|
|||||||||||||
|
|||||||||||||
| UL File No. | NRKH.E181493 & NRKH7.E181493 | ||||||||||||
- 1) Ub and Ta constant.
Safety-related parameters
| MTTFD | 1,300 years |
| DCavg | 0 % |
| TM (mission time) | 20 years |
Classifications
| ECl@ss 5.0 | 27270104 |
| ECl@ss 5.1.4 | 27270104 |
| ECl@ss 6.0 | 27270104 |
| ECl@ss 6.2 | 27270104 |
| ECl@ss 7.0 | 27270104 |
| ECl@ss 8.0 | 27270104 |
| ECl@ss 8.1 | 27270104 |
| ECl@ss 9.0 | 27270104 |
| ECl@ss 10.0 | 27270104 |
| ECl@ss 11.0 | 27270104 |
| ECl@ss 12.0 | 27274301 |
| ETIM 5.0 | EC002544 |
| ETIM 6.0 | EC002544 |
| ETIM 7.0 | EC002544 |
| ETIM 8.0 | EC002544 |
| UNSPSC 16.0901 | 39122230 |
