Adhesive Sealant & Lubricant

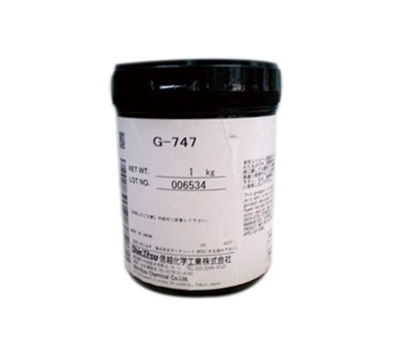

Shin Etsu G-747 Thermal Grease
- High thermal conductivity
- Superior electrical properties
- Water repellency
- Thermal and oxidative stability
Product Description
Shin-Etsu's G-747 thermal interface grease is a general purpose grease with a high thermal conductivity that also exhibits superior electrical properties and water repellency. G-747 has exceptional thermal and oxidative stability and is ideal for resin-encapsulated power transistors.
Typical Applications
Semiconductor elements
Various heat sinks
Resin-encapsulated power transistors
Typical Properties
Note: Values are not for specification purposes.
Shin-Etsu's G-747 thermal interface grease is a general purpose grease with a high thermal conductivity that also exhibits superior electrical properties and water repellency. G-747 has exceptional thermal and oxidative stability and is ideal for resin-encapsulated power transistors.
Typical Applications
Semiconductor elements
Various heat sinks
Resin-encapsulated power transistors
Typical Properties
| Type | Thermal Grease |
| One/Two Component | One |
| Low Molecular Weight Siloxane Stripped? | Y |
| Color | White |
| Density @ 23C (g/cm3) | 2.65 |
| Viscosity (Pa·s) | 50 |
| Penetration (1/10mm) | 328 |
| Volume Resistivity (TΩ·m) | 2.500 |
| Dielectric Strength (kV/mm) | 15 |
| Thermal Conductivity (W/m·K) | 0.9 |
| Thermal Resistance (mm2·K/W) | 7 |
| % Oil Seperation | 0.01 |
| % Volatile Content | 0.06 |
| Usable Temp. Range (C) | -50 to +150 |
| Bond Line Thickness (μm) | 8 |
