Adhesive Sealant & Lubricant

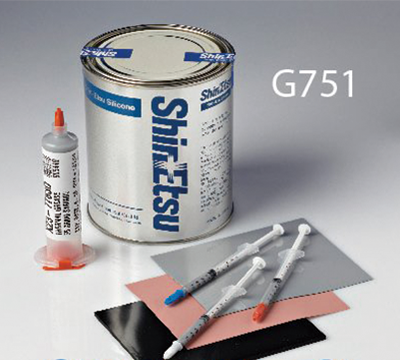

Shin Etsu G-751 Thermal Grease
- Superior thermal conductivity
- Cold resistance
- Water repellency
Product Description
Shin-Etsu's G-751 thermal interface grease is a general purpose product that exhibits superior thermal conductivity. G-751 is an excellent product for applications that require high thermal conductivity without the need for electrical insulation.
Typical Applications
Typical Properties
Note: Values are not for specification purposes.
Shin-Etsu's G-751 thermal interface grease is a general purpose product that exhibits superior thermal conductivity. G-751 is an excellent product for applications that require high thermal conductivity without the need for electrical insulation.
Typical Applications
- CPUs
- MPUs
- Semiconductor elements and heat sinks requiring high thermal conductivity
Typical Properties
| Type | Thermal Grease |
| One/Two Component | One |
| Low Molecular Weight Siloxane Stripped? | Y |
| Color | Gray |
| Density @ 23C (g/cm3) | 2.51 |
| Viscosity (Pa·s) | 420 |
| Volume Resistivity (TΩ·m) | 0.008 |
| Thermal Conductivity (W/m·K) | 4.5 |
| Thermal Resistance (mm2·K/W) | 17 |
| % Oil Seperation | 0.01 |
| % Volatile Content | 0.1 |
| Usable Temp. Range (C) | -50 to +120 |
| Bond Line Thickness (μm) | 62 |
