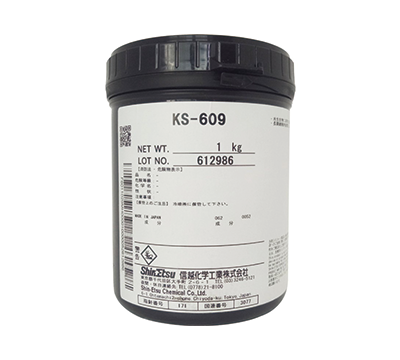

Shin Etsu KS-609 Thermal Conductive Grease
- High thermal conductivity
- Superior electrical properties
- Water repellency
- Thermal and oxidative stability
Product Description
Shin-Etsu's KS-609 thermal interface grease is a general purpose grease with a high thermal conductivity that exhibits superior electrical properties and water repellency. KS-609 also has exceptional thermal and oxidative stability.
Typical Applications
Semiconductor elements
Various heat sinks
Typical Properties
Note: Values are not for specification purposes.
Shin-Etsu's KS-609 thermal interface grease is a general purpose grease with a high thermal conductivity that exhibits superior electrical properties and water repellency. KS-609 also has exceptional thermal and oxidative stability.
Typical Applications
Semiconductor elements
Various heat sinks
Typical Properties
| Type | Thermal Grease |
| One/Two Component | One |
| Low Molecular Weight Siloxane Stripped? | Y |
| Color | White |
| Density @ 23C (g/cm3) | 2.5 |
| Viscosity (Pa·s) | 70 |
| Penetration (1/10mm) | 328 |
| Volume Resistivity (TΩ·m) | 2.300 |
| Dielectric Strength (kV/mm) | 14 |
| Thermal Conductivity (W/m·K) | 0.7 |
| % Oil Seperation | 0.3 |
| % Volatile Content | 0.3 |
| Usable Temp. Range (C) | -55 to +200 |
