Mold Parts

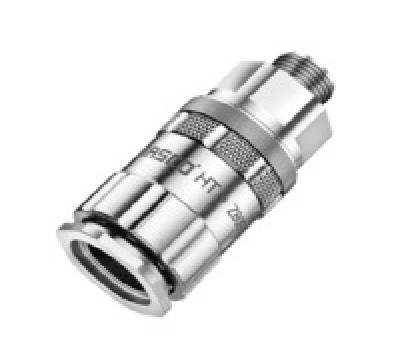

Shut-off coupling, clean break
| p | sw1 | l1 | d3 | d2 | Typ | d7 | Product |
|---|---|---|---|---|---|---|---|
| 35 | 22 | 59 | 25 | 7 | 9 | G1/4 |
Z8090HT/9/G1/4
|
| 35 | 22 | 59 | 25 | 7 | 9 | M14x1,5 |
Z8090HT/9/14x1,5
|
| 35 | 27 | 74,75 | 33 | 10 | 13 | G3/8 |
Z8090HT/13/G3/8
|
| 35 | 27 | 74,75 | 33 | 8 | 13 | M16x1,5 |
Z8090HT/13/16x1,5
|
