    Mold Parts

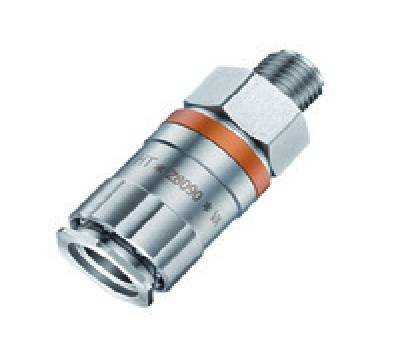

    Shut-off coupling, Stainless Steel, clean break

    • Hasco Z8090HT/Typ/d7/Mat
    • 1.4305
    • max. 35 bar
    Shut-off coupling, Stainless Steel, clean break

    shut-off-coupling-stainless-steel-clean-break-z8090ht-typ-d7-mat-2

    p sw1 l1 d3 d2 Typ d7 Mat Product
    35 22 59 25 7 9 G1/4 VA
    Z8090HT/9/G1/4/VA
    35 22 59 25 7 9 M14x1,5 VA
    Z8090HT/9/14x1,5/VA
    35 27 74,75 33 10 13 G3/8 VA
    Z8090HT/13/G3/8/VA
    35 27 74,75 33 8 13 M16x1,5 VA
    Z8090HT/13/16x1,5/VA


    The new low-leakage HASCO temperature control range ensures maximum safety during uncoupling. The
    innovative function with flat end sealing surfaces permits a low leakage opening and closure under pressure
    without any media escape. The quick-release couplings can be operated with just one hand and lock automatically
    and securely during coupling. The system shuts off on both sides. It is available in the high-quality materials 2.0401
    (brass) and 1.4305 (stainless steel). The additional HT version guarantees a reliable and durable manufacturing
    process for high-temperature applications.


    • Low leakage, when uncoupled under pressure
    • Maximum flow rate with a low pressure drop
    • No contamination of the working environment
    • Long, precise guidance of the sealing nipple
    • Robust with respect to vibrations and movements
    • Maximum safety for operators
    • Effective protection against contamination
    • High service temperatures depending on the temperature control medium
    • Stainless steel variants (1.4305) ideal for medical and clean-room technology applications – Completely tight and durable
    • Easy one-hand operation
