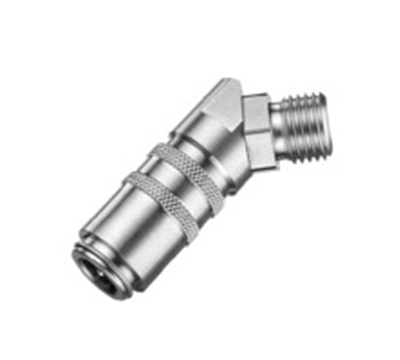

Shut-off coupling, Stainless Steel, with valve, 45° angled
- Hasco Z807/d4xd7xw1/Mat
- 1.4305
Shut-off coupling, Stainless Steel, with valve, 45° angled
| p | sw1 | l2 | l1 | d6 | d2 | d4 | d7 | w1 | Mat | Product |
|---|---|---|---|---|---|---|---|---|---|---|
| 25 | 15 | 11 | 47 | 17 | 6 | 9 | M14x1,5 | 45 | VA |
Z807/9x14x1,5x45/VA
|
| 25 | 17 | 12 | 53,5 | 22 | 9 | 13 | M16x1,5 | 45 | VA |
Z807/13x16x1,5x45/VA
|
