Mold Parts

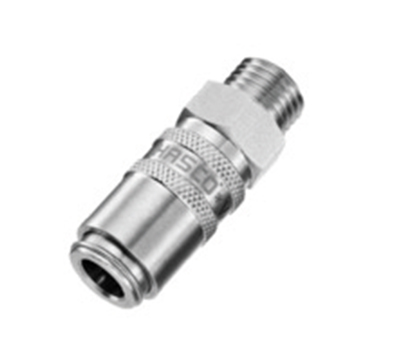

Shut-off coupling, Stainless Steel, with valve
- Hasco Z807/d4xd7/Mat
- 1.4305
- max. 25 bar
Shut-off coupling, Stainless Steel, with valve

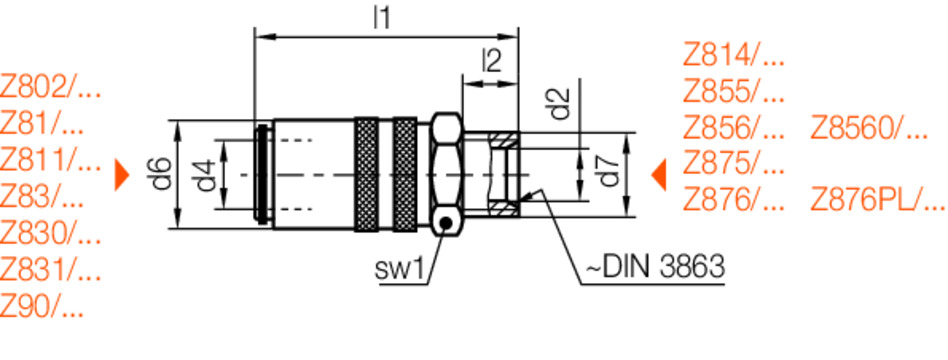

| p | sw1 | l2 | l1 | d6 | d2 | d4 | d7 | Mat | Product |
|---|---|---|---|---|---|---|---|---|---|
| 25 | 17 | 9 | 48 | 17 | 6 | 9 | G1/4 | VA |
Z807/9xG1/4/VA
|
| 25 | 17 | 9 | 48 | 17 | 6 | 9 | M14x1,5 | VA |
Z807/9x14x1,5/VA
|
| 25 | 22 | 9 | 51,5 | 22 | 9 | 13 | G3/8 | VA |
Z807/13xG3/8/VA
|
| 25 | 22 | 9 | 51,5 | 22 | 9 | 13 | M16x1,5 | VA |
Z807/13x16x1,5/VA
|
