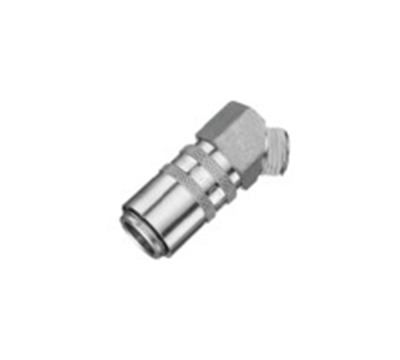

Shut-off coupling, with valve, 45° angled
- Hasco Z807/d4xd7xw1
- 2.0401
- max. 25 bar
Shut-off coupling, with valve, 45° angled

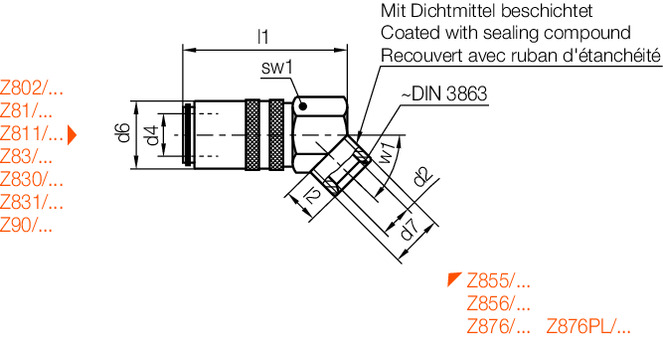

| p | sw1 | l2 | l1 | d6 | d2 | d4 | d7 | w1 | Product |
|---|---|---|---|---|---|---|---|---|---|
| 25 | 17 | 11 | 45,5 | 17 | 6 | 9 | G3/8 | 45 |
Z807/9xG3/8x45
|
| 25 | 17 | 9 | 47 | 17 | 6 | 9 | M14x1,5 | 45 |
Z807/9x14x1,5x45
|
| 25 | 22 | 12,5 | 54 | 22 | 9 | 13 | G3/8 | 45 |
Z807/13xG3/8x45
|
| 25 | 22 | 12 | 54 | 22 | 6 | 13 | M14x1,5 | 45 |
Z807/13x14x1,5x45
|
| 25 | 22 | 9 | 53,5 | 22 | 9 | 13 | M16x1,5 | 45 |
Z807/13x16x1,5x45
|
| 25 | 30 | 21,7 | 81 | 31 | 13 | 19 | M24x1,5 | 45 |
Z807/19x24x1,5x45
|
