Mold Parts

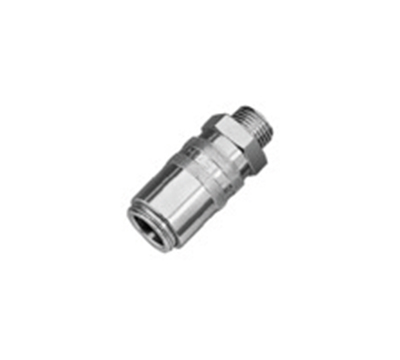

Shut-off coupling, with valve

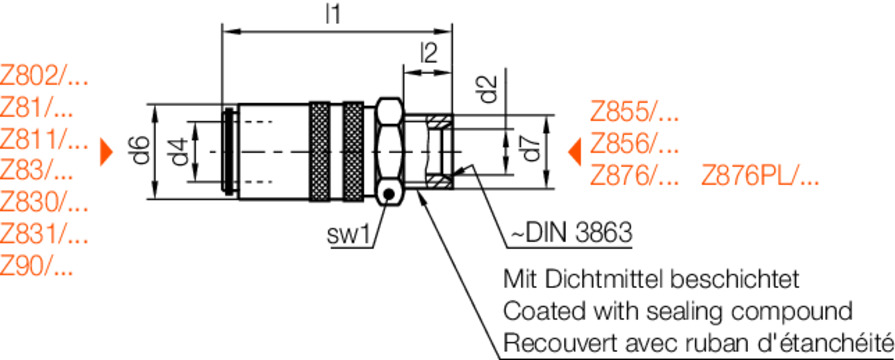

| p | sw1 | l2 | l1 | d6 | d2 | d4 | d7 | Product |
|---|---|---|---|---|---|---|---|---|
| 25 | 17 | 9 | 48 | 17 | 6 | 9 | G1/4 |
Z807/9xG1/4
|
| 25 | 19 | 9 | 48 | 17 | 8 | 9 | G3/8 |
Z807/9xG3/8
|
| 25 | 17 | 7 | 46 | 17 | 6 | 9 | M10x1 |
Z807/9x10x1
|
| 25 | 17 | 9 | 48 | 17 | 6 | 9 | M14x1,5 |
Z807/9x14x1,5
|
| 25 | 19 | 9 | 48 | 17 | 8 | 9 | M16x1,5 |
Z807/9x16x1,5
|
| 25 | 21 | 12 | 54 | 22 | 9 | 13 | G1/2 |
Z807/13xG1/2
|
| 25 | 22 | 11 | 54 | 22 | 9 | 13 | G1/4 |
Z807/13xG1/4
|
| 25 | 22 | 9 | 52 | 22 | 9 | 13 | G3/8 |
Z807/13xG3/8
|
| 25 | 22 | 11 | 54 | 22 | 8 | 13 | M14x1,5 |
Z807/13x14x1,5
|
| 25 | 22 | 9 | 52 | 22 | 9 | 13 | M16x1,5 |
Z807/13x16x1,5
|
