Mold Parts

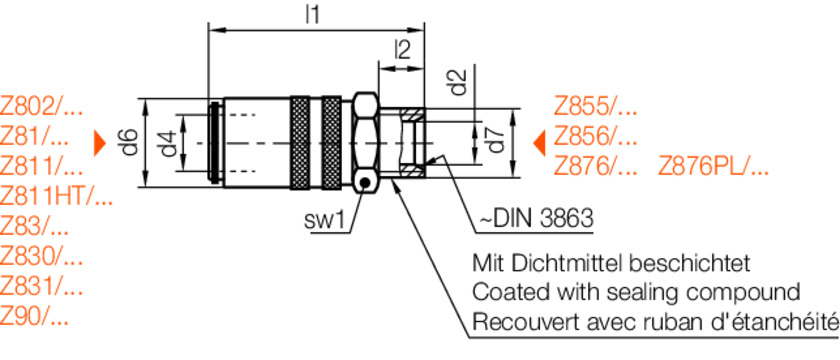

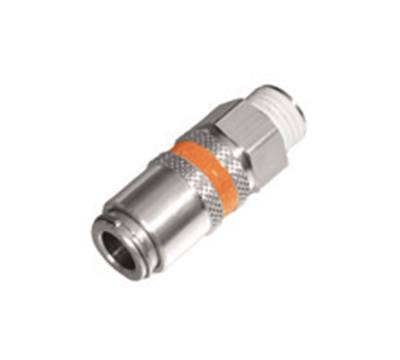

Shut-off coupling, with valve
| p | sw1 | l2 | l1 | d6 | d2 | d4 | d7 | Product |
|---|---|---|---|---|---|---|---|---|
| 25 | 17 | 9 | 48 | 17 | 6 | 9 | M14x1,5 |
Z807HT/9x14x1,5
|
| 25 | 22 | 9 | 52 | 22 | 9 | 13 | M16x1,5 |
Z807HT/13x16x1,5
|
