Sensor

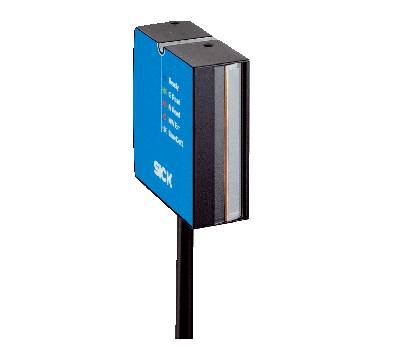

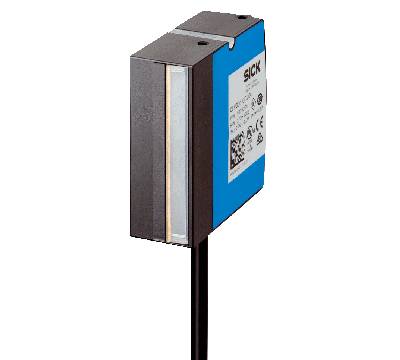

Fixed mount barcode scanners SICK CLV60x / CLV601
Type:CLV601-0D200
Part No.:1079204
Part No.:1079204
Features
Mechanics/electronics
Performance
Interfaces
Ambient data
General notes
Classifications
| Connection type | Cable | ||||||||
| Reading field | Front | ||||||||
| Scanning method | Line scanning | ||||||||
| Sensor type | Line scanner | ||||||||
| Optical focus | Fixed focus (30 mm) | ||||||||
| Sensor | CMOS line sensor | ||||||||
| Sensor resolution | 2,048 px | ||||||||
|
|||||||||
| LED class | Risk group 0 (IEC 62471:2006-07, EN 62471:2008-09) | ||||||||
| Aperture angle | ≤ 71° | ||||||||
| Scanning frequency | 750 Hz | ||||||||
| Code resolution | 0.125 mm ... 0.5 mm | ||||||||
|
|||||||||
| Reading distance | 15 mm ... 70 mm 1) | ||||||||
- 1) For details see reading field diagram.
Mechanics/electronics
| Connection type | 1 x 9-pin D-sub male connector (2 m) |
| Supply voltage | 5 V DC, ± 10 % |
| Power consumption | Typ. 1 W |
| Housing | Zinc diecast |
| Housing color | Light blue (RAL 5012), black (RAL 9005) |
| Front screen | Plastic |
| Enclosure rating | IP40 (DIN 40 050) |
| Protection class | III (VDE 0106/IEC 1010-1) |
| Weight | 230 g, with connecting cable |
| Dimensions (L x W x H) | 55 mm x 52 mm x 20 mm |
| MTBF | 100,000 h |
Performance
| Readable code structures | 1D codes |
| Bar code types | All current code types, Code 39, Code 128, Code 93, Codabar, UPC / GTIN / EAN, Interleaved 2 of 5 |
| Print ratio | 2:1 ... 3:1 |
| No. of codes per scan | 1 ... 1 |
| No. of codes per reading interval | 1 ... 15 (auto-discriminating) |
| No. of characters per reading interval | 450 |
| Number of characters per code | ≤ 30 |
| No. of multiple readings | 1 ... 100 |
Interfaces
|
|||||||
| Digital inputs |
1 (“Input 1”) Vin = max. 30 V |
||||||
| Digital outputs |
2 (“Output 1”) “Output 2” Iout = max. 50 mA |
||||||
| Reading pulse | Start: Digital input, free, command, auto pulse, stop: Digital input, free, command, timer, Good Read | ||||||
| Optical indicators | 1 RGB LED (multifunctional) | ||||||
| Acoustic indicators | Beeper/buzzer (can be switched off, can be allocated as a result indication function) | ||||||
| Configuration software | SOPAS ET | ||||||
Ambient data
| Electromagnetic compatibility (EMC) | EN 61000-6-3/A1:2011-03 / EN 61000-6-2:2005-08 |
| Vibration resistance | EN 60068-2-6:2008-02 |
| Shock resistance | EN 60068-2-27:2009-05 |
| Ambient operating temperature | 0 °C ... +50 °C |
| Storage temperature | –20 °C ... +70 °C |
| Permissible relative humidity | 90 %, Non-condensing |
| Ambient light immunity | 5,000 lx, on barcode |
| Bar code print contrast (PCS) | ≥ 60 % |
General notes
| Items supplied | Single scanner, Safety Notes |
Classifications
| ECl@ss 5.0 | 27280102 |
| ECl@ss 5.1.4 | 27280102 |
| ECl@ss 6.0 | 27280102 |
| ECl@ss 6.2 | 27280102 |
| ECl@ss 7.0 | 27280102 |
| ECl@ss 8.0 | 27280102 |
| ECl@ss 8.1 | 27280102 |
| ECl@ss 9.0 | 27280102 |
| ECl@ss 10.0 | 27280102 |
| ECl@ss 11.0 | 27280102 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| UNSPSC 16.0901 | 43211701 |
