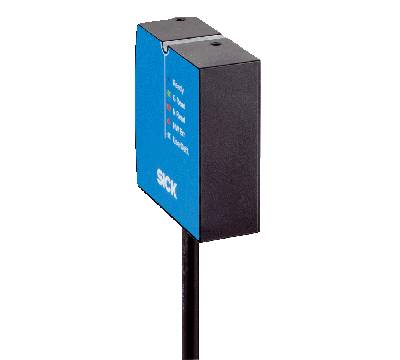

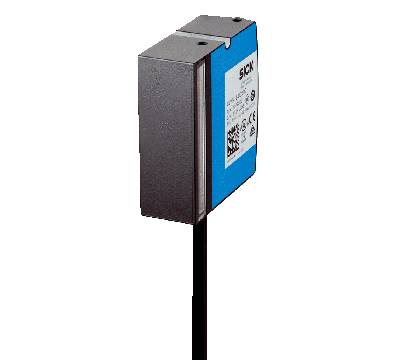

    Fixed mount barcode scanners SICK CLV60x / CLV601

    Type:CLV601-1D200
    Part No.:1079206
    Features
    Connection type Cable
    Reading field Side
    Scanning method Line scanning
    Sensor type Line scanner
    Optical focus Fixed focus (31 mm)
    Sensor CMOS line sensor
    Sensor resolution 2,048 px
    Light source
    Light spot LED, Visible, Red, 626 nm
    LED class Risk group 0 (IEC 62471:2006-07, EN 62471:2008-09)
    Aperture angle ≤ 71°
    Scanning frequency 750 Hz
    Code resolution 0.125 mm ... 0.5 mm
    Reading angle
    Tilt α ± 5° (with code resolution ≥ 0.125 mm)
    ± 10° (with code resolution ≥ 0.15 mm)
    ± 15° (with code resolution ≥ 0.2 mm)
    ± 25° (with code resolution ≥ 0.35 mm)
    Pitch β ± 6° (with code resolution ≥ 0.2 mm)
    ± 15° (with code resolution ≥ 0.5 mm)
    Skew γ ± 20° (with code resolution ≥ 0.2 mm)
    ± 30° (with code resolution ≥ 0.5 mm)
    Reading distance 15 mm ... 70 mm 1)
    • 1) For details see reading field diagram.


    Mechanics/electronics
    Connection type 1 x 9-pin D-sub male connector (2 m)
    Supply voltage 5 V DC, ± 10 %
    Power consumption Typ. 1 W
    Housing Zinc diecast
    Housing color Light blue (RAL 5012), black (RAL 9005)
    Front screen Plastic
    Enclosure rating IP40 (DIN 40 050)
    Protection class III (VDE 0106/IEC 1010-1)
    Weight 230 g, with connecting cable
    Dimensions (L x W x H) 55 mm x 52 mm x 20 mm
    MTBF 100,000 h


    Performance
    Readable code structures 1D codes
    Bar code types All current code types, Code 39, Code 128, Code 93, Codabar, UPC / GTIN / EAN, Interleaved 2 of 5
    Print ratio 2:1 ... 3:1
    No. of codes per scan 1 ... 1
    No. of codes per reading interval 1 ... 15 (auto-discriminating)
    No. of characters per reading interval 450
    Number of characters per code ≤ 30
    No. of multiple readings 1 ... 100


    Interfaces
    Serial ✔ , RS-232
    Function Host, AUX
    Data transmission rate 2,400 Baud ... 250 kBaud, AUX: 57.6 kBaud
    Digital inputs

    1 (“Input 1”)

    Vin = max. 30 V

    Digital outputs

    2 (“Output 1”)

    “Output 2”

    Iout = max. 50 mA

    Reading pulse Start: Digital input, free, command, auto pulse, stop: Digital input, free, command, timer, Good Read
    Optical indicators 1 RGB LED (multifunctional)
    Acoustic indicators Beeper/buzzer (can be switched off, can be allocated as a result indication function)
    Configuration software SOPAS ET


    Ambient data
    Electromagnetic compatibility (EMC) EN 61000-6-3/A1:2011-03 / EN 61000-6-2:2005-08
    Vibration resistance EN 60068-2-6:2008-02
    Shock resistance EN 60068-2-27:2009-05
    Ambient operating temperature 0 °C ... +50 °C
    Storage temperature –20 °C ... +70 °C
    Permissible relative humidity 90 %, Non-condensing
    Ambient light immunity 5,000 lx, on barcode
    Bar code print contrast (PCS) ≥ 60 %


    General notes
    Items supplied Single scanner, Safety Notes


    Classifications
    ECl@ss 5.0 27280102
    ECl@ss 5.1.4 27280102
    ECl@ss 6.0 27280102
    ECl@ss 6.2 27280102
    ECl@ss 7.0 27280102
    ECl@ss 8.0 27280102
    ECl@ss 8.1 27280102
    ECl@ss 9.0 27280102
    ECl@ss 10.0 27280102
    ECl@ss 11.0 27280102
    ETIM 5.0 EC002550
    ETIM 6.0 EC002550
    ETIM 7.0 EC002550
    ETIM 8.0 EC002550
    UNSPSC 16.0901 43211701
