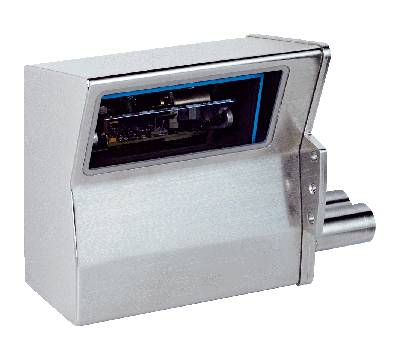

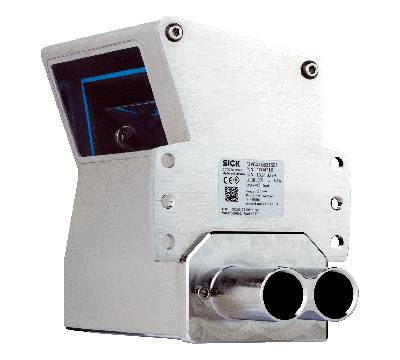

Fixed mount barcode scanners SICK CLV64x / CLV640 / Standard Density
Type:CLV640-0831S01
Part No.:1064718
Part No.:1064718
Features
Mechanics/electronics
Performance
Interfaces
Ambient data
Classifications
| Version | Standard Density | ||||||
| Connection type | Ethernet | ||||||
| Reading field | Oscillating mirror | ||||||
| Scanning method | Line scanning | ||||||
| Sensor type | Line scanner | ||||||
| Optical focus | Dynamic focus control | ||||||
|
|||||||
| Light spot | Circular | ||||||
| Laser class | 2 (IEC 60825-1:2014, EN 60825-1:2014) | ||||||
| Aperture angle | ≤ 50° | ||||||
| Scanning frequency | 400 Hz ... 1,200 Hz | ||||||
| Code resolution | 0.2 mm ... 1 mm | ||||||
| Reading distance | 47 mm ... 798 mm 1) | ||||||
|
|||||||
- 1) For details see reading field diagram.
Mechanics/electronics

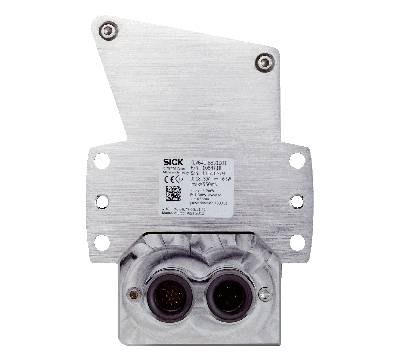

| Connection type | 2 x M12 cylindrical connectors (1 x 17-pin male connector, 4-pin female connector) |
| Supply voltage | 18 V DC ... 30 V DC |
| Power consumption | 6.5 W |
| Housing | Stainless steel |
| Housing color | Stainless steel (unpainted) |
| Front screen | Plastic |
| Enclosure rating | IP69K (DIN 40 050, part 9) |
| Protection class | III (EN 61140) |
| Weight | 1,230 g, without connecting cable |
| Dimensions (L x W x H) | 121 mm x 164 mm x 84 mm |
| MTBF | 100,000 h |
| MTTF | 40,000 h (Laser diode) 1) |
- 1) At 25 °C.
Performance
| Readable code structures | 1D codes |
| Bar code types | All current code types, Code 39, Code 128, Code 93, Codabar, GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey |
| Print ratio | 2:1 ... 3:1 |
| No. of codes per scan |
1 ... 20 (Standard decoder) 1 ... 6 (SMART decoder) |
| No. of codes per reading interval | 1 ... 50 (auto-discriminating) |
| No. of characters per reading interval |
5,000 500 (for multiplexer function in CAN operation) |
| No. of multiple readings | 1 ... 99 |
Interfaces
|
|||||||
|
|||||||
|
|||||||
|
|||||||
|
|||||||
|
|||||||
|
|||||||
|
|||||||
|
|||||||
| Digital inputs | 4 (“Sensor 1”, “Sensor 2”, 2 inputs via optional CMC600 in CDB650) | ||||||
| Digital outputs | 4 (“Result 1”, “Result 2”, 2 via optional CMC600 parameter memory in CDB650) | ||||||
| Reading pulse | Digital inputs, serial interface, auto pulse, CAN | ||||||
| Configuration software | SOPAS ET | ||||||
Ambient data
| Electromagnetic compatibility (EMC) | EN 61000-6-3 (2001-10) / EN 61000-6-2:2005 |
| Vibration resistance | EN 60068-2-6 (1995) |
| Shock resistance | EN 60068-2-27 (1993) |
| Ambient operating temperature | 0 °C ... +40 °C |
| Storage temperature | –20 °C ... +70 °C |
| Permissible relative humidity | 90 %, Non-condensing |
| Ambient light immunity | 2,000 lx, on barcode |
| Bar code print contrast (PCS) | ≥ 60 % |
Classifications
| ECl@ss 5.0 | 27280102 |
| ECl@ss 5.1.4 | 27280102 |
| ECl@ss 6.0 | 27280102 |
| ECl@ss 6.2 | 27280102 |
| ECl@ss 7.0 | 27280102 |
| ECl@ss 8.0 | 27280102 |
| ECl@ss 8.1 | 27280102 |
| ECl@ss 9.0 | 27280102 |
| ECl@ss 10.0 | 27280102 |
| ECl@ss 11.0 | 27280102 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| UNSPSC 16.0901 | 43211701 |
