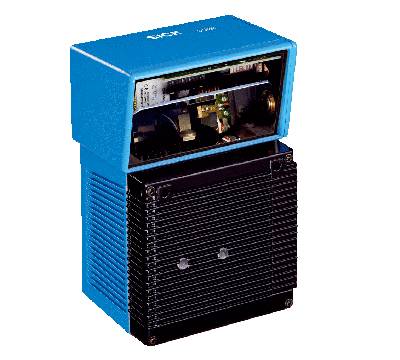

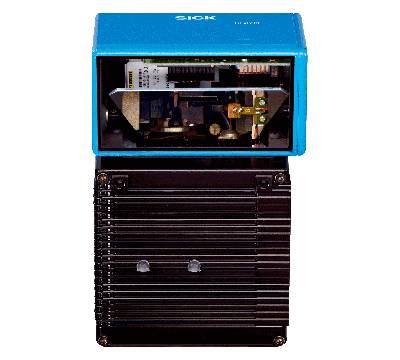

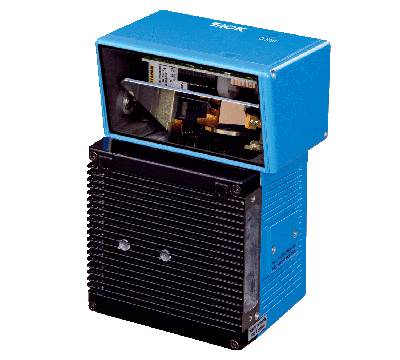

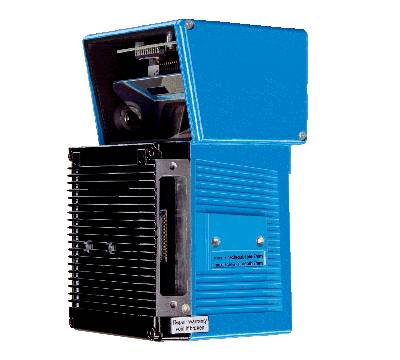

Fixed mount barcode scanners SICK CLV69x / CLV690-0/1
Type:CLV690-1000
Part No.:1056601
Part No.:1056601
Features
Mechanics/electronics
Performance
Interfaces
Ambient data
Classifications
| Version | Standard Density | ||||||
| Connection type | Depending on the cloning plug used | ||||||
| Reading field | Oscillating mirror | ||||||
| Scanning method | Line scanning | ||||||
| Sensor type | Line scanner | ||||||
| Optical focus | Auto focus (alternative: dynamic focus control) | ||||||
| No. of distance configurations | ≤ 8 | ||||||
| Focus adjustment time | ≤ 20 ms | ||||||
| Focus trigger source | Data interface / Digital inputs | ||||||
| Light source / Light spot | Laser, Visible, Red, 660 nm | ||||||
| Laser class | 2 (IEC 60825-1:2014, EN 60825-1:2014) | ||||||
| Aperture angle | ≤ 50° | ||||||
| Scanning frequency | 400 Hz ... 1,200 Hz | ||||||
| Code resolution | 0.3 mm ... 1 mm | ||||||
| Reading distance | 500 mm ... 2,100 mm 1) | ||||||
|
|||||||
- 1) For details see reading field diagram.
Mechanics/electronics
| Connection type | Depending on the cloning plug used |
| Supply voltage | 18 V DC ... 30 V DC |
| Power consumption | 17 W |
| Housing | Aluminum die cast |
| Housing color | Light blue (RAL 5012) |
| Front screen | Glass |
| Enclosure rating | IP65 (EN 60529/A1 (2002-02)) |
| Weight | 2,200 g |
| Dimensions (L x W x H) | 182 mm x 128 mm x 97 mm |
| MTBF | 100,000 h |
| MTTF | 40,000 h (Laser diode) 1) |
- 1) At 25 °C.
Performance
| Readable code structures | 1D codes |
| Bar code types | Interleaved 2 of 5, all current code types, Codabar, Code 128, Code 39, Code 93, GS1-128 / EAN 128, UPC / GTIN / EAN |
| Print ratio | 2:1 ... 3:1 |
| No. of codes per scan |
1 ... 20 (Standard decoder) 1 ... 6 (SMART decoder) |
| No. of codes per reading interval | 1 ... 50 (auto-discriminating) |
| No. of characters per reading interval | 5,000 |
| No. of multiple readings | 1 ... 100 |
Interfaces
|
|||||||||
|
|||||||||
|
|||||||||
|
|||||||||
|
|||||||||
|
|||||||||
|
|||||||||
| Digital inputs | 6 (“Sensor 1” ... “Sensor 6”) | ||||||||
| Digital outputs | 4 (“Result 1” ... “Result 4”) | ||||||||
| Reading pulse | Digital inputs, serial interface, auto pulse, CAN | ||||||||
| Optical indicators |
6 LEDs (Ready) Result Laser Data CAN LNK TX Bar graph for displaying the reading rate percentage (10 LEDs) |
||||||||
| Control elements | 2 buttons | ||||||||
| Parameter storage | Integrated in cloning plug | ||||||||
| Configuration software | SOPAS ET | ||||||||
Ambient data
| Electromagnetic compatibility (EMC) |
EN 61000-6-4 (2007-01) + A1 (2011) EN 61000-6-2:2005-08 |
| Vibration resistance | EN 60068-2-6:2008-02 |
| Shock resistance | EN 60068-2-27:2009-05 |
| Ambient operating temperature | 0 °C ... +40 °C |
| Storage temperature | –20 °C ... +70 °C |
| Permissible relative humidity | 90 %, Non-condensing |
| Ambient light immunity | 2,000 lx, on barcode |
| Bar code print contrast (PCS) | ≥ 60 % |
Classifications
| ECl@ss 5.0 | 27280102 |
| ECl@ss 5.1.4 | 27280102 |
| ECl@ss 6.0 | 27280102 |
| ECl@ss 6.2 | 27280102 |
| ECl@ss 7.0 | 27280102 |
| ECl@ss 8.0 | 27280102 |
| ECl@ss 8.1 | 27280102 |
| ECl@ss 9.0 | 27280102 |
| ECl@ss 10.0 | 27280102 |
| ECl@ss 11.0 | 27280102 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| UNSPSC 16.0901 | 43211701 |
