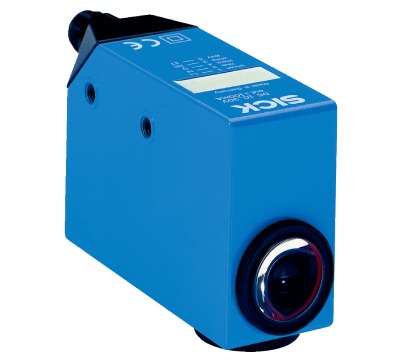

Color Sensors SICK CS8
Features
Features
| Dimensions (W x H x D) | 30.4 mm x 80 mm x 53 mm |
| Sensing distance | 12.5 mm 1) |
| Sensing distance tolerance | ± 3 mm |
| Housing design (light emission) | Rectangular |
| Light source | LED, RGB 2) |
| Wave length | 640 nm, 525 nm, 470 nm |
| Light spot size | 2 mm x 4 mm |
| Light spot direction | Vertical |
| Adjustment | Teach-in button |
| Teach-in mode | Static 1-point teach-in |
- 1) From front edge of lens.
- 2) Average service life: 100,000 h at TU = +25 °C.
Mechanics/electronics
| Supply voltage | 10 V DC ... 30 V DC 1) |
| Ripple | < 5 Vpp 2) |
| Current consumption | < 120 mA 3) |
| Switching frequency |
0.5 kHz 4) 1 kHz 3.5 kHz Adjustable |
| Response time | 1,000 µs, 500 µs, 145 µs 5) |
| Switching output | PNP |
| Switching output (voltage) | PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V |
| Output (channel) | 4 colors |
| Output current Imax. | < 100 mA 6) |
| Input, teach-in (ET) |
PNP Teach: U = 10 V ... < UV Run: U < 2 V |
| Input, blanking input (AT) |
PNP Blanked: U > 10 V ... < Uv Free-running: U < 2 V 7) |
| Retention time (ET) | 25 ms, non-volatile memory |
| Time delay | Deactivation delay 20 ms, shiftable |
| Connection type | Male connector M12, 8-pin |
| Protection class | II 8) |
| Circuit protection |
UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression |
| Enclosure rating | IP67 |
| Weight | 400 g |
| Housing material | Metal, zinc diecast |
- 1) Limit values when operated in short-circuit protected network: max. 8 A.
- 2) May not exceed or fall below Uv tolerances.
- 3) Without load.
- 4) With light/dark ratio 1:1.
- 5) Signal transit time with resistive load.
- 6) Consumption count Q1 / Q2.
- 7) AT > 200 µs.
- 8) Reference voltage DC 32 V.
Ambient data
| Ambient operating temperature | –10 °C ... +55 °C |
| Ambient temperature, storage | –20 °C ... +75 °C |
| Shock load | According to IEC 60068 |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
Classifications
| ECl@ss 5.0 | 27270907 |
| ECl@ss 5.1.4 | 27270907 |
| ECl@ss 6.0 | 27270907 |
| ECl@ss 6.2 | 27270907 |
| ECl@ss 7.0 | 27270907 |
| ECl@ss 8.0 | 27270907 |
| ECl@ss 8.1 | 27270907 |
| ECl@ss 9.0 | 27270907 |
| ECl@ss 10.0 | 27270907 |
| ECl@ss 11.0 | 27270907 |
| ETIM 5.0 | EC001817 |
| ETIM 6.0 | EC001817 |
| ETIM 7.0 | EC001817 |
| ETIM 8.0 | EC001817 |
| UNSPSC 16.0901 | 39121528 |
