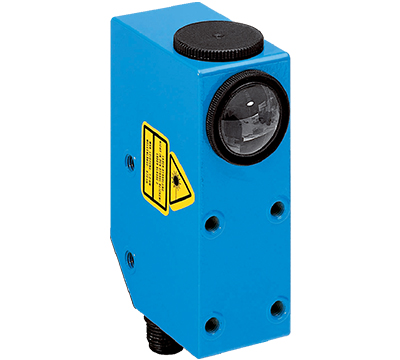

Sensor
Features
| Dimensions (W x H x D) | 30.4 mm x 53 mm x 80 mm |
| Sensing distance | 150 mm 1) |
| Housing design (light emission) | Large |
| Light source | Laser, red 2) |
| Laser class | II (EN 60825-1:2014), IEC 60825-1:2014 |
| Wave length | 655 nm |
| Light emission | Long side of housing |
| Light spot size | Ø 0.3 mm 3) |
| Light spot direction | Round |
| Operating distance | 30 mm ... 800 mm 4) |
| Adjustment | Teach-in button |
| Teach-in mode |
Static 2-point teach-in Dynamic teach-in (min/max) |
| Function | Automatic drift correction |
- 1) From leading edge of lens.
- 2) Average service life: 50,000 h at TU = +25 °C.
- 3) At focal point = sensing distance 150 mm.
- 4) With respect to black-white contrast 6 % / 90 %.
Mechanics/electronics
| Supply voltage | 10 V DC ... 30 V DC 1) |
| Ripple | ≤ 5 Vpp 2) |
| Current consumption | < 80 mA 3) |
| Switching frequency | 17 kHz 4) |
| Response time | 30 µs 5) |
| Jitter | < 15 µs |
| Switching output | PNP |
| Switching output (voltage) | PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V |
| Analog output | 0.3 mA ... 20 mA |
| Output current Imax. | 100 mA |
| Input, teach-in (ET) |
PNP Teach: U = 10 V ... < UV Run: U < 2 V |
| Retention time (ET) | 25 ms, non-volatile memory |
| Time delay | 20 ms, adjustable |
| Connection type | Male connector M12, 5-pin |
| Protection class | II 6) |
| Circuit protection |
UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression |
| Enclosure rating | IP67 |
| Weight | + 400 g |
| Housing material | Metal, zinc diecast |
| Optics material | Glass |
- 1) Limit values when operated in short-circuit protected network: max. 8 A.
- 2) May not exceed or fall below Uv tolerances.
- 3) Without load.
- 4) With light/dark ratio 1:1.
- 5) Signal transit time with resistive load.
- 6) Reference voltage DC 50 V.
Ambient data
| Ambient operating temperature | –10 °C ... +45 °C |
| Ambient temperature, storage | –10 °C ... +75 °C |
| Shock load | According to IEC 60068 |
| UL File No. | 242368, CDRH-conform |
Classifications
| ECl@ss 5.0 | 27270906 |
| ECl@ss 5.1.4 | 27270906 |
| ECl@ss 6.0 | 27270906 |
| ECl@ss 6.2 | 27270906 |
| ECl@ss 7.0 | 27270906 |
| ECl@ss 8.0 | 27270906 |
| ECl@ss 8.1 | 27270906 |
| ECl@ss 9.0 | 27270906 |
| ECl@ss 10.0 | 27270906 |
| ECl@ss 11.0 | 27270906 |
| ETIM 5.0 | EC001820 |
| ETIM 6.0 | EC001820 |
| ETIM 7.0 | EC001820 |
| ETIM 8.0 | EC001820 |
| UNSPSC 16.0901 | 39121528 |
