    Sensor

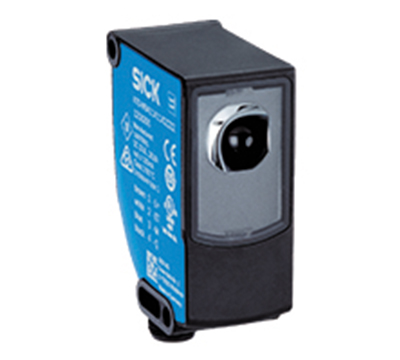

    Contrast sensors SICK KTS Prime

    Type:KTS-WB9124115AZZZZ
    Part No.:1221290
    Features
    Special applications High Sensitivity
    Device type Standard
    Dimensions (W x H x D) 26 mm x 62 mm x 47.5 mm
    Sensing distance 25 mm
    Sensing distance tolerance ± 4 mm
    Housing design (light emission) Middle
    Light source LED, RGB 1)
    Wave length 470 nm, 525 nm, 625 nm
    Light emission Long side of housing
    Light spot size 1.2 mm x 5.3 mm
    Light spot direction Vertical 2)
    Receiving filters None
    Teach-in mode 1-point teach-in, 2-point teach-in, teach-in dynamic, auto mode
    Output function Light/dark switching
    Delay time Adjustable
    Special features -
    Delivery status 2-point teach-in
    Parameter presettings None
    • 1) Average service life: 100,000 h at TU = +25 °C.
    • 2) In relation to long side of housing.
    Mechanics/electronics
    Supply voltage 10.8 V DC ... 28.8 V DC 1)
    Ripple ≤ 5 Vpp 2)
    Current consumption < 100 mA 3)
    Switching frequency 25 kHz 4) 5)
    Response time 20 µs 6) 7)
    Jitter 10 µs 8)
    Switching output Push-pull: PNP/NPN
    Switching output (voltage) Push-pull: PNP/NPN HIGH = UV - 3 V/LOW ≤ 3 V
    Output current Imax. 100 mA 9)
    Input, teach-in (ET) Teach: U = 10 V ... < VS
    Input, blanking input (AT) Blanked: U = 10 V ... < Uv
    Input, fine/coarse (F/C) Coarse: U = 10 V ... < Uv
    Input, light/dark (L/D) Light: U = 10 V ... < Uv
    Retention time (ET) 25 ms, non-volatile memory
    Connection type Male connector M12, 5-pin
    Protection class III
    Circuit protection

    UV connections, reverse polarity protected

    Output Q short-circuit protected

    Interference pulse suppression

    Enclosure rating IP67
    Weight 68 g
    Housing material Plastic, VISTAL®
    Optics material Plastic, COP
    • 1) Limit values: DC 12 V (–10 %) ... DC 24 V (+20 %). Operation in short-circuit protected network max. 8 A.
    • 2) May not exceed or fall below Uv tolerances.
    • 3) Without load.
    • 4) With light/dark ratio 1:1.
    • 5) 1-point teach-in (color mode): 8 kHz.
    • 6) Signal transit time with resistive load.
    • 7) 1-point teach-in (color mode): 60 µs.
    • 8) 1-point teach-in (color mode): 30 µs.
    • 9) Total current of all Outputs.
    Ambient data
    IO-Link ✔ , IO-Link
    VendorID 26
    DeviceID HEX 8000A4
    DeviceID DEC 8388772
    Process data structure

    Bit 0 = switching signal QL1

    Bit 1 = empty

    Bit 2 = Quality of Run Alarm

    Bit 3 ... 5 = Emission Color

    Bit 6 … 15 = Measurment Value Emission Color

    Digital output Q1, Q2
    Number 2
    Digital input In1, In2
    Number 2
    Classifications
    Ambient operating temperature –20 °C ... +60 °C
    Ambient temperature, storage –25 °C ... +75 °C
    Shock load According to IEC 60068-2-27 (30 g/11 ms)
    UL File No. E181493
    Connection/pin assignment
    ECl@ss 5.0 27270906
    ECl@ss 5.1.4 27270906
    ECl@ss 6.0 27270906
    ECl@ss 6.2 27270906
    ECl@ss 7.0 27270906
    ECl@ss 8.0 27270906
    ECl@ss 8.1 27270906
    ECl@ss 9.0 27270906
    ECl@ss 10.0 27270906
    ECl@ss 11.0 27270906
    ETIM 5.0 EC001820
    ETIM 6.0 EC001820
    ETIM 7.0 EC001820
    ETIM 8.0 EC001820
    UNSPSC 16.0901 39121528
