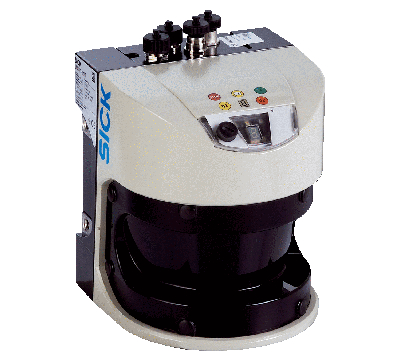

Sensor
Features
Mechanics/electronics
Performance
Interfaces
Ambient data
Classifications
| Light source | Infrared (905 nm) |
| Laser class | 1, eye-safe (IEC 60825-1:2014) |
| Aperture angle | 190° |
| Scanning frequency |
35 Hz 50 Hz 75 Hz |
| Bandwidth | No limit |
| Heating | Yes |
| Working range | 0.5 m ... 20 m |
| Amount of evaluated echoes | 5 |

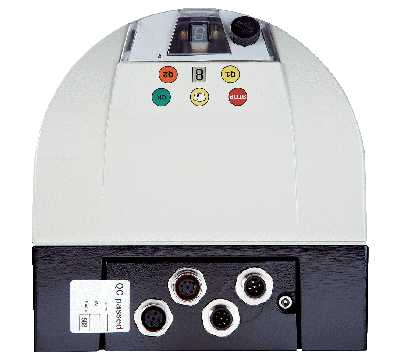

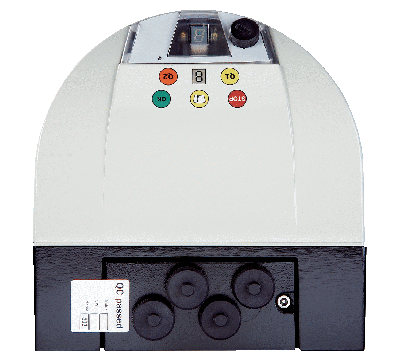

Mechanics/electronics
| Electrical connection | M12 round connector |
| Supply voltage scanner/heater | 19.2 V ... 28.8 V |
| Prohibited residual ripple | ± 5 % |
| Switch-on peak current | 2 A |
| Operating current scanner | ≤ 1.3 A |
| Power consumption | 22 W, + 55 W heating (typical) |
| Housing color | Gray (RAL 7032) |
| Enclosure rating | IP67 (IEC 60529) |
| Protection class | III |
| Weight | 3.7 kg |
| Dimensions | 160 mm x 155 mm x 185 mm |
| Distance of the sensor to the bulk solid | ≥ 0.5 m |
| Switch-on time | ≤ 60 s |
| MTTF | > 100 years |
Performance
| Response time | 13 ms, 20 ms, 28 ms |
| Average filter | 0 s ... 3,600 s |
| Accuracy | ± 3 %, at reference conditions |
| Max. conveyor speed | ≤ 30 m/s |
Interfaces
|
|||||||
|
|||||||
|
|||||||
| Switching inputs | 2 (+ Encoder) | ||||||
| Switching outputs | 6 | ||||||
| Analog signals | Available with separate accessory BAM100 | ||||||
| Communication interface |
Auxiliary interface, 1, USB 2.0, 500 kBaud Serial host interface, 1, RS-232/RS-422, 500 kBaud Ethernet, 1, TCP/IP, 100 Mbit/s |
||||||
| Optical indicators | 5 LEDs (Additional 7-segment display) | ||||||
Ambient data
| Electromagnetic compatibility (EMC) | IEC 61000-6-2:2016-08 / IEC 61000-6-3:2006-07 / EN 61000-6-2:2005 / EN 61000-6-3 / A1 2011 |
| Ambient operating temperature | –40 °C ... +60 °C |
| Storage temperature | –40 °C ... +70 °C |
| Ambient light immunity | 70,000 lx |
Classifications
| ECl@ss 5.0 | 27200413 |
| ECl@ss 5.1.4 | 27200413 |
| ECl@ss 6.0 | 27200413 |
| ECl@ss 6.2 | 27200413 |
| ECl@ss 7.0 | 27200413 |
| ECl@ss 8.0 | 27200413 |
| ECl@ss 8.1 | 27200413 |
| ECl@ss 9.0 | 27200413 |
| ECl@ss 10.0 | 27200413 |
| ECl@ss 11.0 | 27200413 |
| ETIM 5.0 | EC002580 |
| ETIM 6.0 | EC002580 |
| ETIM 7.0 | EC002580 |
| ETIM 8.0 | EC002580 |
| UNSPSC 16.0901 | 41112501 |
