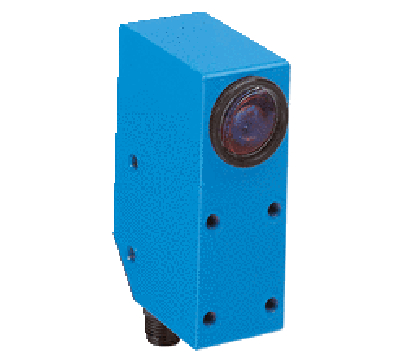

    Luminescence sensors SICK LUT3

    Type:LUT3-890
    Part No.:1014058
    Features
    Dimensions (W x H x D) 30.4 mm x 53 mm x 80 mm
    Sensing distance 90 mm 1)
    Housing design (light emission) Rectangular
    Light source LED, Ultraviolet light 2)
    Wave length 375 nm
    Light spot size 12 mm x 12 mm
    Receiving filters KV 418 (standard)
    Receiving range 450 nm ... 750 nm
    Adjustment Potentiometer
    Output function Light switching
    • 1) From front edge of lens.
    • 2) Average service life: 100,000 h at TU = +25 °C.


    Mechanics/electronics
    Supply voltage 12 V DC ... 30 V DC 1)
    Ripple < 2 Vpp 2)
    Current consumption < 60 mA 3)
    Switching frequency 1.5 kHz 4)
    Response time 350 µs 5)
    Switching output PNP, NPN
    Switching output (voltage)

    PNP: HIGH = VS– ≤ 3 V / LOW = approx. 0 V

    NPN: HIGH = approx. VS / LOW ≤ 2 V

    Switching mode Light switching
    Output current Imax. 100 mA
    Connection type Male connector M12, 5-pin
    Protection class II 6)
    Circuit protection

    UV connections, reverse polarity protected

    Output Q short-circuit protected

    Interference pulse suppression

    Enclosure rating IP67
    Weight 400 g
    Housing material Metal, zinc diecast
    • 1) Limit values when operated in short-circuit protected network: max. 8 A.
    • 2) May not exceed or fall below Uv tolerances.
    • 3) Without load.
    • 4) With light/dark ratio 1:1.
    • 5) Signal transit time with resistive load.
    • 6) Reference voltage DC 50 V.


    Ambient data
    Ambient operating temperature –10 °C ... +55 °C
    Ambient storage temperature –25 °C ... +75 °C
    Shock load According to IEC 60068
    UL File No. NRKH.E181493 & NRKH7.E181493


    Classifications
    ECl@ss 5.027270908
    ECl@ss 5.1.427270908
    ECl@ss 6.027270908
    ECl@ss 6.227270908
    ECl@ss 7.027270908
    ECl@ss 8.027270908
    ECl@ss 8.127270908
    ECl@ss 9.027270908
    ECl@ss 10.027270908
    ECl@ss 11.027270908
    ETIM 5.0EC001822
    ETIM 6.0EC001822
    ETIM 7.0EC001822
    UNSPSC 16.090139121528
