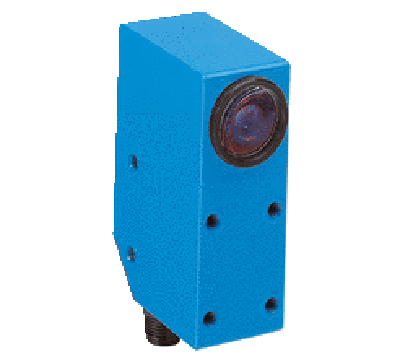

Sensor
Features
Mechanics/electronics
Ambient data
Classifications
| Dimensions (W x H x D) | 30.4 mm x 53 mm x 80 mm |
| Sensing distance | 50 mm 1) |
| Housing design (light emission) | Rectangular |
| Light source | LED, Ultraviolet light 2) |
| Wave length | 375 nm |
| Light spot size | 5 mm x 15 mm |
| Receiving filters | RG 665 |
| Receiving range | 670 nm ... 750 nm |
| Adjustment | Potentiometer |
| Output function | Light switching |
- 1) From front edge of lens.
- 2) Average service life: 100,000 h at TU = +25 °C.
Mechanics/electronics
| Supply voltage | 12 V DC ... 30 V DC 1) |
| Ripple | < 2 Vpp 2) |
| Current consumption | < 60 mA 3) |
| Switching frequency | 1.5 kHz 4) |
| Response time | 350 µs 5) |
| Switching output | PNP, NPN |
| Switching output (voltage) |
PNP: HIGH = VS– ≤ 3 V / LOW = approx. 0 V NPN: HIGH = approx. VS / LOW ≤ 2 V |
| Switching mode | Light switching |
| Output current Imax. | 100 mA |
| Connection type | Male connector M12, 5-pin |
| Protection class | II 6) |
| Circuit protection |
UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression |
| Enclosure rating | IP67 |
| Weight | 400 g |
| Housing material | Metal, zinc diecast |
- 1) Limit values when operated in short-circuit protected network: max. 8 A.
- 2) May not exceed or fall below Uv tolerances.
- 3) Without load.
- 4) With light/dark ratio 1:1.
- 5) Signal transit time with resistive load.
- 6) Reference voltage DC 50 V.
Ambient data
| Ambient operating temperature | –10 °C ... +55 °C |
| Ambient storage temperature | –25 °C ... +75 °C |
| Shock load | According to IEC 60068 |
Classifications
| ECl@ss 5.0 | 27270908 |
| ECl@ss 5.1.4 | 27270908 |
| ECl@ss 6.0 | 27270908 |
| ECl@ss 6.2 | 27270908 |
| ECl@ss 7.0 | 27270908 |
| ECl@ss 8.0 | 27270908 |
| ECl@ss 8.1 | 27270908 |
| ECl@ss 9.0 | 27270908 |
| ECl@ss 10.0 | 27270908 |
| ECl@ss 11.0 | 27270908 |
| ETIM 5.0 | EC001822 |
| ETIM 6.0 | EC001822 |
| ETIM 7.0 | EC001822 |
| UNSPSC 16.0901 | 39121528 |
