    Sensor

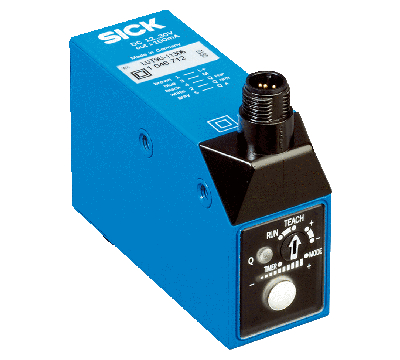

    Luminescence sensors SICK LUT9

    Type:LUT9U-P120L
    Part No.:1046188
    Features
    Dimensions (W x H x D) 30.4 mm x 53 mm x 80 mm
    Sensing distance 20 mm 1)
    Housing design (light emission) Rectangular
    Working range 10 mm ... 40 mm
    Light source LED, Ultraviolet light 2)
    Wave length 375 nm
    Light emission Long side
    Light spot size 3 mm x 9 mm
    Light spot direction Vertical
    Receiving filters KV 418 (standard)
    Receiving range 450 nm ... 750 nm
    Adjustment

    Teach-in button

    IO-Link (optional)

    Output function Light switching 3)
    • 1) From front edge of lens.
    • 2) Average service life: 100,000 h at TU = +25 °C.
    • 3) L/D switching via teach-in or IO-Link.


    Mechanics/electronics
    Supply voltage 10 V DC ... 30 V DC 1)
    Ripple < 5 Vpp 2)
    Current consumption < 100 mA 3)
    Switching frequency

    0.5 kHz 4)

    2.5 kHz

    6.5 kHz

    Adjustable

    Response time

    1 ms 5)

    200 µs

    75 µs

    Switching output PNP
    Switching output (voltage) PNP: HIGH = VS– ≤ 2 V / LOW approx. 0 V
    Switching mode Light switching
    Analog output 0 mA ... 13 mA
    Output current Imax. 100 mA
    Time delay Switch-off delay, 0 ms / 10 ms / 20 ms, adjustable (0 ms = default)
    Connection type Male connector M12, 4-pin
    Protection class II 6)
    Circuit protection

    UV connections, reverse polarity protected

    Output Q short-circuit protected

    Interference pulse suppression

    Enclosure rating IP67
    Weight 400 g
    Housing material Metal, zinc diecast
    • 1) Limit values when operated in short-circuit protected network: max. 8 A.
    • 2) May not exceed or fall below Uv tolerances.
    • 3) Without load.
    • 4) With light/dark ratio 1:1, without timer stage.
    • 5) Signal transit time with resistive load.
    • 6) Reference voltage DC 50 V.


    Communication interface
    Communication interface IO-Link (IO-Link V1.0)
    Cycle time 2.3 ms
    Process data length 16 Bit
    Process data structure

    Bit 0 = switching signal QL1

    Bit 1 … 5 = empty

    Bit 6 … 15 = Analog Measurment Value

    VendorID 26
    DeviceID HEX 80000F
    DeviceID DEC 8388623


    Ambient data
    Ambient operating temperature –10 °C ... +55 °C
    Ambient storage temperature –25 °C ... +75 °C
    Shock load According to IEC 60068


    Classifications
    ECl@ss 5.0 27270908
    ECl@ss 5.1.4 27270908
    ECl@ss 6.0 27270908
    ECl@ss 6.2 27270908
    ECl@ss 7.0 27270908
    ECl@ss 8.0 27270908
    ECl@ss 8.1 27270908
    ECl@ss 9.0 27270908
    ECl@ss 10.0 27270908
    ECl@ss 11.0 27270908
    ETIM 5.0 EC001822
    ETIM 6.0 EC001822
    ETIM 7.0 EC001822
    UNSPSC 16.0901 39121528
