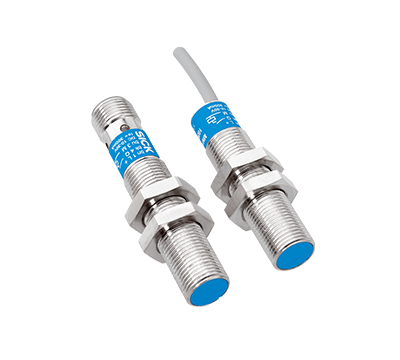

Sensor
Features
Mechanics/electronics
Safety-related parameters
Classifications
| Housing | Cylindrical thread design |
| Housing | Advanced |
| Thread size | M12 x 1 |
| Diameter | Ø 12 mm |
| Sensing range Sn | 5 mm ... 90 mm 1) |
| Safe sensing range Sa | 72.9 mm |
| Magnetic sensitivity | ≤ 0.6 mT |
| Switching frequency | 1,000 Hz |
| Connection type | Male connector M12, 4-pin |
| Switching output | PNP |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Magnetic alignment | Axial |
| Enclosure rating | IP67 2) |
- 1) Sensing range based on installation in non-magnetic material using Magnet MAG-3010-B (M4.0).
- 2) According to EN 60529.
Mechanics/electronics
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | ≤ 10 % 1) |
| Voltage drop | ≤ 2.2 V 2) |
| Current consumption | 10 mA 3) |
| Time delay before availability | ≤ 30 ms |
| Hysteresis | ≤ 25 % |
| Reproducibility | ≤ 1 % 4) |
| Temperature drift (of Sr) | ± 10 % |
| EMC | According to EN 60947-5-2 |
| Continuous current Ia | ≤ 200 mA |
| Short-circuit protection | ✔ 5) |
| Reverse polarity protection | ✔ |
| Power-up pulse protection | ✔ |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature | –25 °C ... +75 °C |
| Housing material | Metal, Nickel-plated brass |
| Housing length | 62.5 mm |
| Thread length | 40 mm |
| Tightening torque, max. | ≤ 7 Nm |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
- 1) Of VS.
- 2) At Ia max.
- 3) Without load.
- 4) Von Sr (VS und Ta constant).
- 5) Pulsed.
Safety-related parameters
| MTTFD | 2,519 years |
| DCavg | 0 % |
Classifications
| ECl@ss 5.0 | 27270104 |
| ECl@ss 5.1.4 | 27270104 |
| ECl@ss 6.0 | 27270104 |
| ECl@ss 6.2 | 27270104 |
| ECl@ss 7.0 | 27270104 |
| ECl@ss 8.0 | 27270104 |
| ECl@ss 8.1 | 27270104 |
| ECl@ss 9.0 | 27270104 |
| ECl@ss 10.0 | 27270104 |
| ECl@ss 11.0 | 27270104 |
| ETIM 5.0 | EC002544 |
| ETIM 6.0 | EC002544 |
| ETIM 7.0 | EC002544 |
| ETIM 8.0 | EC002544 |
| UNSPSC 16.0901 | 39122230 |
