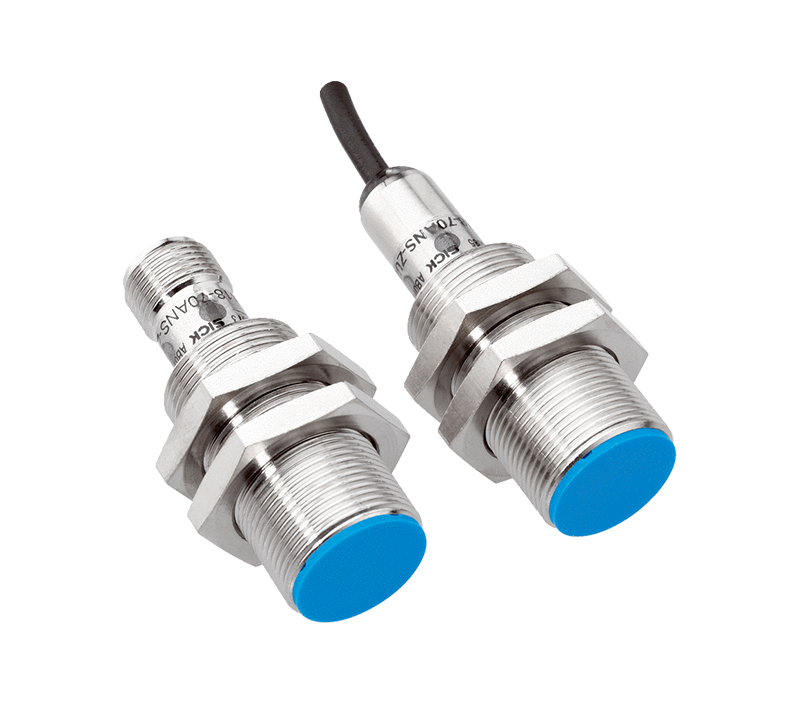

    Magnetic proximity sensors Sick MM

    Type:MM18-00APS-ZCK
    Part No.:1076085

    Features
    Housing Cylindrical thread design
    Housing Short-body
    Thread size M18 x 1
    Diameter Ø 18 mm
    Sensing range Sn 5 mm ... 120 mm
    1) 2) 3)
    Safe sensing range Sa 97.2 mm
    2) 2) 3) 3)
    Magnetic sensitivity 0.4 mT
    Switching frequency 5,000 Hz
    Connection type Male connector M12, 4-pin
    Switching output PNP
    Output function NO
    Electrical wiring DC 3-wire
    Enclosure rating IP67 4)
    • 1) Max. fluss density allowed at the sensor: 280mT.
    • 2) Excluding the geomagnetic field.
    • 3) Based on M4.0 magnet.
    • 4) According to EN 60529.

    Mechanics/electronics
    Supply voltage 10 V DC ... 30 V DC
    Ripple ≤ 10 %
    Voltage drop ≤ 2 V 1)
    Current consumption 10 mA 2)
    Time delay before availability ≤ 100 ms
    Hysteresis 10 % ... 20 %
    Reproducibility ≤ 1 % 3) 4)
    Temperature drift (of Sr) ± 10 %
    EMC According to EN 60947-5-2
    Continuous current Ia ≤ 200 mA
    Short-circuit protection
    Reverse polarity protection
    Power-up pulse protection
    Shock and vibration resistance 30 g, 11 ms/10 Hz ... 55 Hz, 1 mm
    Ambient operating temperature –40 °C ... +75 °C
    Housing material Metal, Nickel-plated brass
    Sensing face material Plastic
    Housing length 58 mm
    Thread length 42 mm
    Tightening torque, max. ≤ 40 Nm
    Items supplied Mounting nut, brass, nickel-plated (2x)
    Protection class III
    • 1) At Ia max.
    • 2) Without load.
    • 3) Ub and Ta constant.
    • 4) Of Sr.

    Safety-related parameters
    MTTFD 2,238 years
    DCavg 0%
    TM (mission time) 20 years
