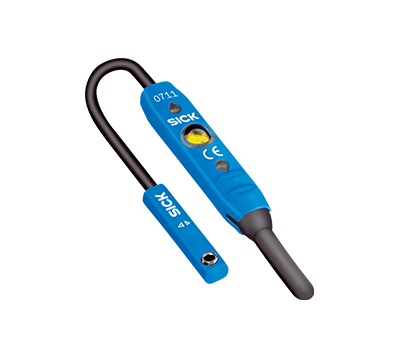

Sensors for C-slot cylinders Sick MZ2Q-C
Type:MZ2Q-CFSPSKQ0
Part No.:1042244
Part No.:1042244
Features
Mechanics/electronics
Safety-related parameters
Classifications
| Cylinder type | C-slot | ||||
| Preferred manufacturer slot | Festo | ||||
| Detection zone | 0 mm ... 50 mm | ||||
| Housing length | 19.5 mm | ||||
| Switching output | 2 x PNP | ||||
| Output function | NO | ||||
| Electrical wiring | DC 4-wire | ||||
| Teach-in | ✔ | ||||
| Enclosure rating | IP67 1) | ||||
|
|||||
- 1) According to EN 60529.
Mechanics/electronics
| Detection zone | 0 mm ... 50 mm | ||||||||||
| Supply voltage | 12 V DC ... 30 V DC | ||||||||||
| Power consumption | Typ. 25 mA, without load | ||||||||||
| Voltage drop | ≤ 2.2 V | ||||||||||
| Continuous current Ia | ≤ 100 mA | ||||||||||
| Protection class | III | ||||||||||
| For Festo cylinders | ✔ | ||||||||||
| Hysteresis, typ. | 1 mT | ||||||||||
| Reproducibility | ≤ 0.1 mT 1) | ||||||||||
| Reverse polarity protection | ✔ | ||||||||||
| Short-circuit protection | ✔ | ||||||||||
| Power-up pulse protection | ✔ | ||||||||||
| Ambient operating temperature | –20 °C ... +75 °C | ||||||||||
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm | ||||||||||
| EMC | According to EN 60947-5-2 | ||||||||||
| Connection type | Cable with connector M12, 4-pin, with knurled nuts, 0.3 m | ||||||||||
|
|||||||||||
|
|||||||||||
| UL File No. | NRKH.E181493 & NRKH7.E181493 | ||||||||||
- 1) Ub and Ta constant.
Safety-related parameters
| MTTFD | 799 years |
| DCavg | 0% |
| TM (mission time) | 20 years |
Classifications
| ECl@ss 5.0 | 27270104 |
| ECl@ss 5.1.4 | 27270104 |
| ECl@ss 6.0 | 27270104 |
| ECl@ss 6.2 | 27270104 |
| ECl@ss 7.0 | 27270104 |
| ECl@ss 8.0 | 27270104 |
| ECl@ss 8.1 | 27270104 |
| ECl@ss 9.0 | 27270104 |
| ECl@ss 10.0 | 27270104 |
| ECl@ss 11.0 | 27270104 |
| ETIM 5.0 | EC002544 |
| ETIM 6.0 | EC002544 |
| ETIM 7.0 | EC002544 |
| ETIM 8.0 | EC002544 |
| UNSPSC 16.0901 | 39122230 |
