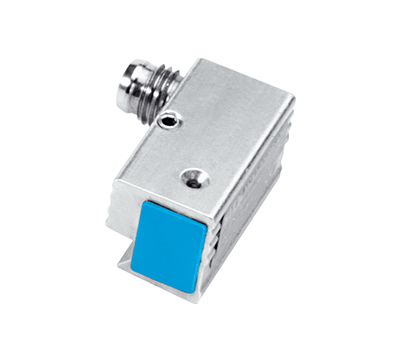

Sensor
Features
Mechanics/electronics
Classifications
| Cylinder type | Dovetail groove cylinder |
| Housing length | 26 mm |
| Switching output | PNP |
| Switching frequency | 5,000 Hz |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP67 1) |
| Sensing face | Front |
- 1) According to EN 60529.
Mechanics/electronics
| Supply voltage | 10 V DC ... 30 V DC | ||||||
| Power consumption | 10 mA, without load | ||||||
| Voltage drop | ≤ 2.2 V 1) | ||||||
| Continuous current Ia | ≤ 200 mA | ||||||
| Time delay before availability | ≤ 30 ms | ||||||
| Response sensitivity, typ. | 2 mT | ||||||
| Reproducibility | ≤ 0.1 mm 2) | ||||||
| Reverse polarity protection | ✔ | ||||||
| Short-circuit protection | ✔ | ||||||
| Power-up pulse protection | ✔ | ||||||
| Ambient operating temperature | –25 °C ... +75 °C | ||||||
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm | ||||||
| EMC | According to EN 60947-5-2 | ||||||
| Connection type | Connector M8, 3-pin | ||||||
|
|||||||
- 1) At Ia max.
- 2) Ub and Ta constant.
Classifications
| ECl@ss 5.0 | 27270104 |
| ECl@ss 5.1.4 | 27270104 |
| ECl@ss 6.0 | 27270104 |
| ECl@ss 6.2 | 27270104 |
| ECl@ss 7.0 | 27270104 |
| ECl@ss 8.0 | 27270104 |
| ECl@ss 8.1 | 27270104 |
| ECl@ss 9.0 | 27270104 |
| ECl@ss 10.0 | 27270104 |
| ECl@ss 11.0 | 27270104 |
| ETIM 5.0 | EC002544 |
| ETIM 6.0 | EC002544 |
| ETIM 7.0 | EC002544 |
| ETIM 8.0 | EC002544 |
| UNSPSC 16.0901 | 39122230 |
