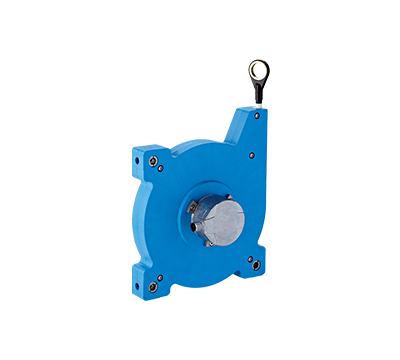

Sensor
Performance - PFG
Interfaces - PFG
Electrical data - PFG
Mechanical data - PFG
Ambient data - PFG
Classifications
| Measurement range | 0 m ... 10 m |
| Encoder | Incremental encoders |
| Resolution (wire draw + encoder) | 0.03 mm 1) 2) |
| Repeatability | ≤ 0.2 mm 3) |
| Linearity | ≤ ± 2 mm 3) |
| Hysteresis | ≤ 0.4 mm 3) |
- 1) The values shown have been rounded.
- 2) Example calculation based on the PFG08 with HTL Push Pull: 230 mm (wire draw length per revolution - see Mechanical data): 16,384 (pulses per revolution) = 0.014 mm (resolution of wire draw + encoder combination).
- 3) Value applies to wire draw mechanism.
Interfaces - PFG
| Communication interface | Incremental / HTL / Push pull |
Electrical data - PFG
| Connection type | Male connector, M12, 8-pin, radial |
| Supply voltage | 10 V ... 32 V |
| Power consumption | ≤ 0.5 W (without load) |
| MTTFd: mean time to dangerous failure | 300 years (EN ISO 13849-1) 1) |
- 1) This product is a standard product and does not constitute a safety component as defined in the Machinery Directive. Calculation based on nominal load of components, average ambient temperature 40°C, frequency of use 8760 h/a. All electronic failures are considered hazardous. For more information, see document no. 8015532.
Mechanical data - PFG
| Weight | 2.2 kg |
| Measuring wire material | Highly flexible stranded steel 1,4401 stainless steel V4A |
| Weight (measuring wire) | 7.1 g/m |
| Housing material, wire draw mechanism | Plastic, Noryl |
| Spring return force | 9 N ... 12 N 1) |
| Length of wire pulled out per revolution | 555 mm |
| Life of wire draw mechanism | Typ. 1,000,000 cycles 2) 3) |
| Actual wire draw length | 10.2 m |
| Wire acceleration | 8 m/s² |
| Operating speed | 3 m/s |
| Mounted encoder | DFS60, DFS60A-S1EC16384, 1037616 |
| Mounted mechanic | MRA-G190-110D3, 5326242 |
- 1) These values were measred at an ambient temperature of 25 °C. There may be variations at other temperatures.
- 2) Average values, which depend on the application.
- 3) The service life depends on the type of load. This is influenced by environmental conditions, the installation location, the measuring range in use, the traversing speed, and acceleration.
Ambient data - PFG
| EMC | According to EN 61000-6-2 and EN 61000-6-4 |
| Enclosure rating | IP50 |
| Operating temperature range | –30 °C ... +70 °C |
Classifications
| ECl@ss 5.0 | 27270590 |
| ECl@ss 5.1.4 | 27270590 |
| ECl@ss 6.0 | 27270590 |
| ECl@ss 6.2 | 27270590 |
| ECl@ss 7.0 | 27270590 |
| ECl@ss 8.0 | 27270590 |
| ECl@ss 8.1 | 27270590 |
| ECl@ss 9.0 | 27270590 |
| ECl@ss 10.0 | 27270613 |
| ECl@ss 11.0 | 27270503 |
| ETIM 5.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| UNSPSC 16.0901 | 41112113 |
