    Sensor

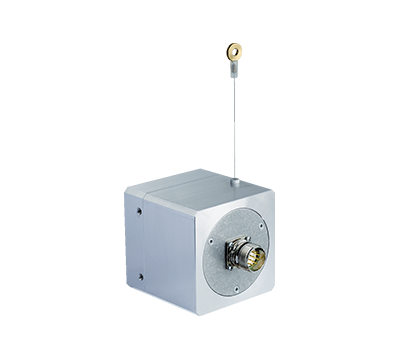

    Wire draw encoders Sick Compact

    Type:PKS09-ATBM0520
    Part No.:1035243

    Performance - PKS
    Measurement range 0 m ... 5 m
    Encoder Incremental encoders
    Pulses per revolution 765
    Repeatability ≤ 0.15 mm
    Linearity ≤ ± 0.7 mm

    Interfaces - PKS
    Communication interface Incremental / TTL / RS-422

    Electrical data - PKS
    Connection type Male connector, M23, 12-pin, radial
    Supply voltage 4.5 V ... 5.5 V
    Operating current ≤ 60 mA (without load)
    MTTFd: mean time to dangerous failure 400 years (EN ISO 13849) 1)
    • 1) This product is a standard product and does not constitute a safety component as defined in the Machinery Directive. Calculation based on nominal load of components, average ambient temperature 40°C, frequency of use 8760 h/a. All electronic failures are considered hazardous. For more information, see document no. 8015532.

    Mechanical data - PKS
    Weight 1.5 kg
    Measuring wire material Highly flexible stranded steel (PA 12 sheathed)
    Housing material, wire draw mechanism Aluminum
    Spring return force 4 N ... 6 N 1)
    Length of wire pulled out per revolution 153 mm
    Life of wire draw mechanism Typ. 800,000 cycles 2) 3)
    Wire acceleration ≤ 20 m/s²
    Operating speed 3.5 m/s
    • 1) These values were measred at an ambient temperature of 25 °C. There may be variations at other temperatures.
    • 2) A cycle consists of the wire being pulled out and drawn in.
    • 3) The service life depends on the type of load. This is influenced by environmental conditions, the installation location, the measuring range in use, the traversing speed, and acceleration.

    Ambient data - PKS
    EMC According to EN 61000-6-2 and EN 61000-6-3
    Enclosure rating IP52, Note required mounting position (IEC 60529)
    Operating temperature range –10 °C ... +70 °C

    Classifications
    ECl@ss 5.0 27270590
    ECl@ss 5.1.4 27270590
    ECl@ss 6.0 27270590
    ECl@ss 6.2 27270590
    ECl@ss 7.0 27270590
    ECl@ss 8.0 27270590
    ECl@ss 8.1 27270590
    ECl@ss 9.0 27270590
    ECl@ss 10.0 27270613
    ECl@ss 11.0 27270503
    ETIM 5.0 EC001486
    ETIM 6.0 EC001486
    ETIM 7.0 EC001486
    ETIM 8.0 EC001486
    UNSPSC 16.0901 41112113
