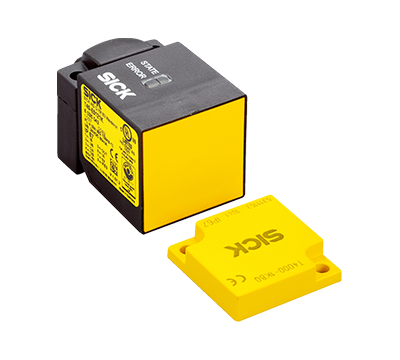

Non-contact safety switches SICK T4000 Direct / Transponder safety switch / Sensor
Type:T40-E0101K
Part No.:6035041
Part No.:6035041
Features
Safety-related parameters
Functions
Interfaces
Electrical data
Mechanical data
Ambient data
Classifications
| System part | Sensor |
| Sensor principle | RFID |
| Number of safe outputs | 2 |
| Safe switch on distance Sao |
15 mm 1) 18 mm 2) 19 mm 3) |
| Safe switch off distance Sar |
45 mm 1) 55 mm 2) 55 mm 3) |
| Active sensor surfaces | 1 |
| Actuation directions | 5 |
| Monitoring time minimum dwell time | ≥ 0.5 s |
| Coding | Universally coded |
- 1) With actuator T4000-1KBA.
- 2) With actuator T4000-1KBQ.
- 3) With actuator T4000-1KBR.
Safety-related parameters
| Category | Category 4 (EN ISO 13849) |
| Performance level | PL e (EN ISO 13849) |
| PFHD (mean probability of a dangerous failure per hour) | 2.1 x 10-9 (EN ISO 13849) |
| TM (mission time) | 20 years (EN ISO 13849) |
| Type | Type 4 (EN ISO 14119) |
| Actuator coding level | Low coding level (EN ISO 14119) |
| Classification in compliance with IEC/EN 60947-5-3 | PDF-M |
Functions
| Safe series connection | None, only individual wiring (with diagnostics) |
Interfaces
|
|||||
| Error indication | ✔ | ||||
| Status display | ✔ | ||||
Electrical data
| Protection class | III | ||||||
|
|||||||
| Usage category | EN 60947-5-2 | ||||||
| Rated operating current (voltage) | 0.4 A (24 V DC) | ||||||
| Rated insulation voltage Ui | 75 V | ||||||
| Rated impulse withstand voltage Uimp | 1,500 V AC | ||||||
| Supply voltage Vs | 24 V DC (20.4 V DC ... 27.6 V DC) | ||||||
| Power consumption | 80 mA | ||||||
| Type of output | Self-monitoring semiconductor outputs (OSSDs) | ||||||
| Response time | ≤ 290 ms | ||||||
| Switch-on time | ≤ 10 s 1) | ||||||
- 1) After switching on the operating voltage, the semiconductor outputs are switched off during the ready delay and the alarm outputs are at LOW potential.
Mechanical data
| Design | Rectangular |
| Dimensions (W x H x D) | 40 mm x 57 mm x 40 mm |
| Weight | 0.4 kg |
| Housing material | Plastic PTB VO GF30 |
Ambient data
| Enclosure rating | IP67 |
| Ambient operating temperature | –20 °C ... +55 °C |
| Storage temperature | –20 °C ... +70 °C |
Classifications
| ECl@ss 5.0 | 27272403 |
| ECl@ss 5.1.4 | 27272403 |
| ECl@ss 6.0 | 27272403 |
| ECl@ss 6.2 | 27272403 |
| ECl@ss 7.0 | 27272403 |
| ECl@ss 8.0 | 27272403 |
| ECl@ss 8.1 | 27272403 |
| ECl@ss 9.0 | 27272403 |
| ECl@ss 10.0 | 27272403 |
| ECl@ss 11.0 | 27272403 |
| ETIM 5.0 | EC001829 |
| ETIM 6.0 | EC001829 |
| ETIM 7.0 | EC001829 |
| ETIM 8.0 | EC001829 |
| UNSPSC 16.0901 | 39122205 |
