    Sensor

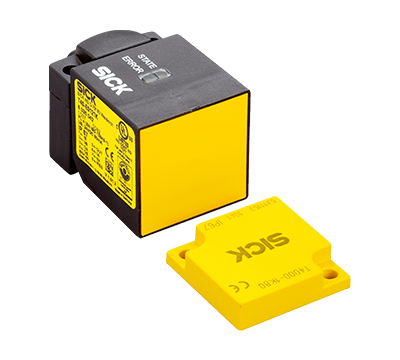

    Non-contact safety switches Sick T4000 Direct / Transponder safety switch / Sensor

    Type:T40-E0121K
    Part No.:6035042
    Features
    System part Sensor
    Sensor principle RFID
    Number of safe outputs 2
    Safe switch on distance Sao

    15 mm 1)

    18 mm 2)

    19 mm 3)

    Safe switch off distance Sar

    45 mm 1)

    55 mm 2)

    55 mm 3)

    Active sensor surfaces 1
    Actuation directions 5
    Monitoring time minimum dwell time ≥ 0.5 s
    Coding Uniquely coded
    • 1) With actuator T4000-1KBA.
    • 2) With actuator T4000-1KBQ.
    • 3) With actuator T4000-1KBR.

    Safety-related parameters
    Category Category 4 (EN ISO 13849)
    Performance level PL e (EN ISO 13849)
    PFHD (mean probability of a dangerous failure per hour) 2.1 x 10-9 (EN ISO 13849)
    TM (mission time) 20 years (EN ISO 13849)
    Type Type 4 (EN ISO 14119)
    Actuator coding level High coding level (EN ISO 14119)
    Classification in compliance with IEC/EN 60947-5-3 PDF-M

    Functions
    Safe series connection None, only individual wiring (with diagnostics)

    Interfaces
    Connection type Plug connector, M12, 8-pin
    Long connecting cable ≤ 200 m
    Error indication
    Status display

    Electrical data
    Protection class III
    Classification according to cULus Class 2
    Note on supply voltage US Operation with UL-class 2 power supply only
    External fuse At supply voltage Vs 0.25 A ... 4 A
    Usage category EN 60947-5-2
    Rated operating current (voltage) 0.4 A (24 V DC)
    Rated insulation voltage Ui 75 V
    Rated impulse withstand voltage Uimp 1,500 V AC
    Supply voltage Vs 24 V DC (20.4 V DC ... 27.6 V DC)
    Power consumption 80 mA
    Type of output Self-monitoring semiconductor outputs (OSSDs)
    Response time ≤ 290 ms
    Switch-on time ≤ 10 s 1)
    • 1) After switching on the operating voltage, the semiconductor outputs are switched off during the ready delay and the alarm outputs are at LOW potential.

    Mechanical data
    Design Rectangular
    Dimensions (W x H x D) 40 mm x 57 mm x 40 mm
    Weight 0.4 kg
    Housing material Plastic PTB VO GF30

    Ambient data
    Enclosure rating IP67
    Ambient operating temperature –20 °C ... +55 °C
    Storage temperature –20 °C ... +70 °C

    Classifications
    ECl@ss 5.0 27272403
    ECl@ss 5.1.4 27272403
    ECl@ss 6.0 27272403
    ECl@ss 6.2 27272403
    ECl@ss 7.0 27272403
    ECl@ss 8.0 27272403
    ECl@ss 8.1 27272403
    ECl@ss 9.0 27272403
    ECl@ss 10.0 27272403
    ECl@ss 11.0 27272403
    ETIM 5.0 EC001829
    ETIM 6.0 EC001829
    ETIM 7.0 EC001829
    ETIM 8.0 EC001829
    UNSPSC 16.0901 39122205
