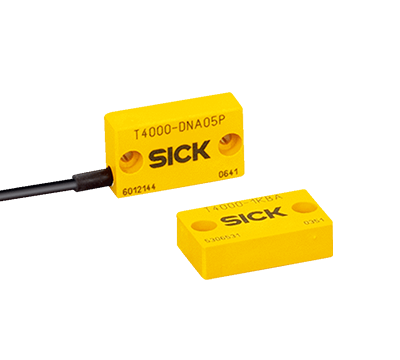

Non-contact safety switches SICK T4000 Standard / T4000 Multi / Transponder safety switch / Sensor
Type:T4000-DNAC
Part No.:6021912
Part No.:6021912
Features
Functions
Interfaces
Mechanical data
Ambient data
Classifications
| System part | Sensor |
| Sensor principle | RFID |
| Safe switch on distance Sao |
5 mm 1) 10 mm 2) |
| Safe switch off distance Sar |
23 mm 1) 32 mm 2) |
| Active sensor surfaces | 1 |
| Actuation directions | 5 |
| Monitoring time minimum dwell time | ≥ 0.5 s |
| Coding | Uniquely coded |
- 1) With evaluation unit T4000-1RBA01.
- 2) With evaluation units T4000-1RCA02, T4000-1RCA04.
Functions
| Safe series connection | None, only individual wiring (with diagnostics) |
Interfaces
| Connection type | Plug connector, M8, 3-pin |
Mechanical data
| Design | Rectangular |
| Dimensions (W x H x D) | 25 mm x 42 mm x 12 mm |
| Weight | 0.12 kg |
| Housing material | Fortron, glass-fiber reinforced thermoplastic |
Ambient data
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +70 °C |
| Storage temperature | –25 °C ... +70 °C |
Classifications
| ECl@ss 5.0 | 27272403 |
| ECl@ss 5.1.4 | 27272403 |
| ECl@ss 6.0 | 27272403 |
| ECl@ss 6.2 | 27272403 |
| ECl@ss 7.0 | 27272403 |
| ECl@ss 8.0 | 27272403 |
| ECl@ss 8.1 | 27272403 |
| ECl@ss 9.0 | 27272403 |
| ECl@ss 10.0 | 27272403 |
| ECl@ss 11.0 | 27272403 |
| ETIM 5.0 | EC001829 |
| ETIM 6.0 | EC001829 |
| ETIM 7.0 | EC001829 |
| ETIM 8.0 | EC001829 |
| UNSPSC 16.0901 | 39122205 |
