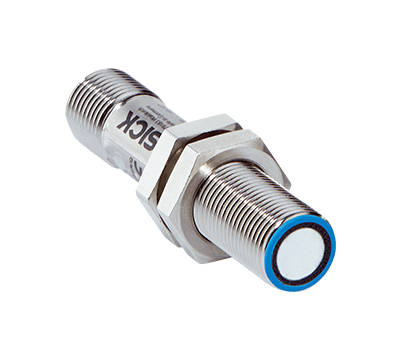

    Ultrasonic sensors SICK UM12 / UM12

    Type:UM12-1192251
    Part No.:6053547
    Mechanics/electronics
    Supply voltage Vs DC 10 V ... 30 V 1)
    Power consumption ≤ 1.05 W 2)
    Initialization time < 300 ms
    Design Cylindrical
    Housing material

    Metal (nickel-plated brass, PBT)

    Ultrasonic transducer: polyurethane foam, glass epoxy resin

    Thread size M12 x 1
    Connection type Male connector, M12, 4-pin
    Indication 2 x LED
    Weight 15 g
    Sending axis Straight
    Dimensions (W x H x D) 12 mm x 12 mm x 55.1 mm
    Enclosure rating IP65 / IP67
    Protection class III
    • 1) Limit values, reverse-polarity protected Operation in short-circuit protected network: max. 8 A, class 2.
    • 2) Without load.

    Performance
    Operating range, limiting range 40 mm ... 240 mm, 350 mm
    Target Natural objects
    Resolution ≥ 0.069 mm
    Repeatability ± 0.15 % 1)
    Accuracy ± 1 % 2)
    Temperature compensation
    Response time 30 ms
    Switching frequency 25 Hz
    Output time 10 ms
    Ultrasonic frequency (typical) 500 kHz
    Additional function Adjustable operating modes: Switching point (DtO) / Switching window/Background (ObSB), teach-in of digital output, invertible digital output, reset to factory default
    3)
    • 1) In relation to the current measured value, minimum value ≥ resolution.
    • 2) Referring to current measurement value.
    • 3) Functions may vary depending on sensor type.

    Interfaces
    Digital output
    Number 1 1)
    Type NPN
    Maximum output current IA ≤ 200 mA
    Hysteresis 3 mm
    • 1) NPN: HIGH = ≤ 2 V / LOW = UV.

    Ambient data
    Ambient temperature, operation –25 °C ... +70 °C
    Ambient temperature, storage –40 °C ... +85 °C

    Classifications
    ECl@ss 5.0 27270804
    ECl@ss 5.1.4 27270804
    ECl@ss 6.0 27270804
    ECl@ss 6.2 27270804
    ECl@ss 7.0 27270804
    ECl@ss 8.0 27270804
    ECl@ss 8.1 27270804
    ECl@ss 9.0 27270804
    ECl@ss 10.0 27270804
    ECl@ss 11.0 27270804
    ETIM 5.0 EC001846
    ETIM 6.0 EC001846
    ETIM 7.0 EC001846
    ETIM 8.0 EC001846
    UNSPSC 16.0901 41111960
