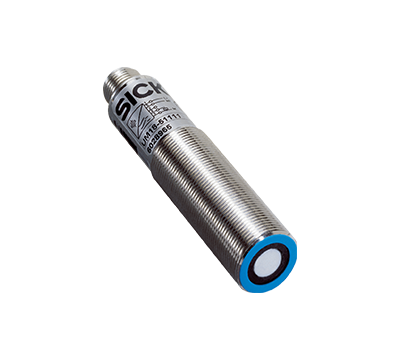

    Ultrasonic sensors SICK UM18 / UM18-1

    Type:UM18-11116
    Part No.:6029507
    Mechanics/electronics
    Supply voltage Vs DC 10 V ... 30 V 1)
    Power consumption ≤ 1.2 W 2)
    Initialization time < 300 ms
    Design Cylindrical
    Housing material

    Metal (nickel-plated brass, PBT)

    Plastic (ultrasonic transducer: polyurethane foam, glass epoxy resin)

    Thread size M18 x 1
    Connection type Male connector, M12, 5-pin
    Indication 2 x LED
    Weight 55 g
    Sending axis Straight
    Dimensions (W x H x D) 18 mm x 18 mm x 73.3 mm
    Enclosure rating IP65 / IP67
    • 1) Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8 A.
    • 2) Without load.

    Performance
    Operating range, limiting range 30 mm ... 250 mm, 350 mm
    Target Natural objects
    Resolution ≥ 0.08 mm
    Repeatability ± 0.15 % 1)
    Accuracy ≤ 2 % 2)
    Response time 32 ms
    Output time 8 ms
    Ultrasonic frequency (typical) 320 kHz
    Detection area (typical) See diagrams
    Additional function Teach-in of analog output, Invertable analog output, Multi functional input: external teach / synchronization of up to 10 sensors, reset to factory default
    • 1) In relation to the current measured value, minimum value ≥ resolution.
    • 2) Referring to current measurement value.

    Interfaces
    Analog output
    Number 1
    Type Current output
    Current 4 mA ... 20 mA, ≤ 500 Ω 1)
    Resolution 12 bit
    Multifunctional input (MF) 1 x
    • 1) For 4 mA ... 20 mA and Vs ≤ 20 V max. load ≤ 100 Ω.

    Ambient data
    Ambient temperature, operation –25 °C ... +70 °C
    Ambient temperature, storage –40 °C ... +85 °C

    Classifications
    ECl@ss 5.0 27270804
    ECl@ss 5.1.4 27270804
    ECl@ss 6.0 27270804
    ECl@ss 6.2 27270804
    ECl@ss 7.0 27270804
    ECl@ss 8.0 27270804
    ECl@ss 8.1 27270804
    ECl@ss 9.0 27270804
    ECl@ss 10.0 27270804
    ECl@ss 11.0 27270804
    ETIM 5.0 EC001846
    ETIM 6.0 EC001846
    ETIM 7.0 EC001846
    ETIM 8.0 EC001846
    UNSPSC 16.0901 41111960
