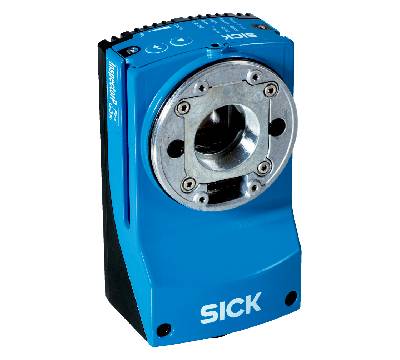

    2D machine vision SICK InspectorP63x / InspectorP631 Flex

    Type:V2D631P-2MXCXB0
    Part No.:1082298
    Features
    Task

    Presence inspection

    Quality inspection

    Measuring, 2D

    Positioning

    Code reading

    Technology 2D snapshot, image analysis
    Product category Programmable
    Toolkit HALCON
    Sensor CMOS matrix sensor, grayscale values
    Shutter technology Global-Shutter
    Optical focus Adjustable focus
    Light source
    Internal lighting To be ordered separately as accessories
    Adjustment aid Laser, Visible, Red, 630 nm ... 680 nm
    Laser class 1, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:2014)
    Spectral range Approx. 400 nm ... 900 nm
    Lens C-mount
    Optical format 1/1.8"
    Note To be ordered separately as accessories


    Mechanics/electronics
    Connection type

    1 x M12, 17-pin male connector (serial, I/Os, voltage supply)

    1 x M8, 4-pin female connector (USB, not used)

    1 x M12, 8-pin female connector (gigabit Ethernet)

    1 x M12, 4-pin female connector (external illumination)

    Supply voltage 12 V DC ... 24 V DC, ± 20 %
    Power consumption Typ. 10 W, ± 20 %
    Enclosure rating IP67 (EN 60529 (1991-10), EN 60529/A2 (2002-02))
    Protection class III (EN 60950-1 (2014-08))
    Housing material Aluminum die cast
    Window material PMMA
    Weight 430 g
    Dimensions (L x W x H) 108 mm x 63 mm x 46 mm 1)
    • 1) Only housing without lens and optics protection hood.


    Performance
    Sensor resolution 1,280 px x 1,024 px (1.3 Mpixel)
    Scan/frame rate 50 Hz


    Interfaces
    Serial ✔ , RS-232, RS-422
    Data transmission rate 300 Baud ... 115.2 kBaud
    Ethernet ✔ , TCP/IP
    Function FTP, HTTP
    Data transmission rate 10/100/1,000 Mbit/s
    CAN
    Function SICK CAN sensor network (master/slave)
    EtherNet/IP™
    Data transmission rate 10/100/1,000 Mbit/s
    PROFINET
    Function PROFINET Single Port, PROFINET Dual Port (optional via external connection module CDF600-2)
    Data transmission rate 10/100 MBit/s
    Operator interfaces Web server
    Configuration software SICK AppStudio
    Data storage and retrieval Image and data logging via microSD memory card and external FTP
    Inputs/outputs 2 opto-decoupled inputs, 4 inputs/outputs, configurable
    Output current ≤ 100 mA
    Maximum encoder frequency 1 kHz
    External illumination control Via digital output (max. 24 V trigger) or external illumination connection
    Control elements 2 buttons
    Optical indicators 11 LEDs (5 x status display, 5 x LED bar graph, 1 green/red feedback spot)
    Acoustic indicators Beeper


    Ambient data
    Shock load EN 60068-2-27:2009-05
    Vibration load EN 60068-2-6:2008-02
    Ambient operating temperature 0 °C ... +50 °C 1)
    Storage temperature –20 °C ... +70 °C 1)
    • 1) Permissible relative air humidity: 0 % ... 90 % (non-condensing).


    Classifications
    ECl@ss 5.0 27310205
    ECl@ss 5.1.4 27310205
    ECl@ss 6.0 27310205
    ECl@ss 6.2 27310205
    ECl@ss 7.0 27310205
    ECl@ss 8.0 27310205
    ECl@ss 8.1 27310205
    ECl@ss 9.0 27310205
    ECl@ss 10.0 27310205
    ECl@ss 11.0 27310205
    ETIM 5.0 EC001820
    ETIM 6.0 EC001820
    ETIM 7.0 EC001820
    ETIM 8.0 EC001820
    UNSPSC 16.0901 43211731
