Sensor

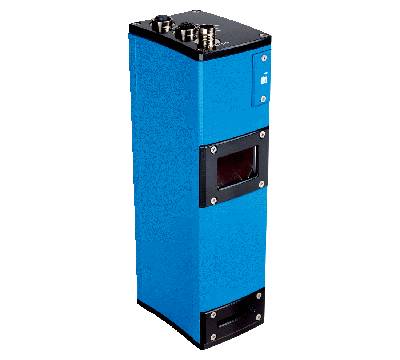

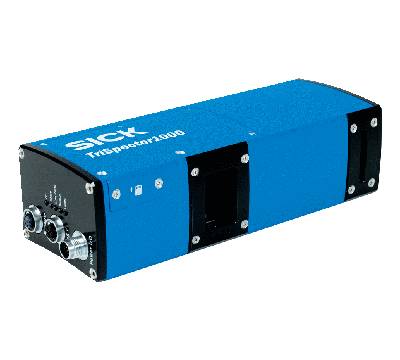

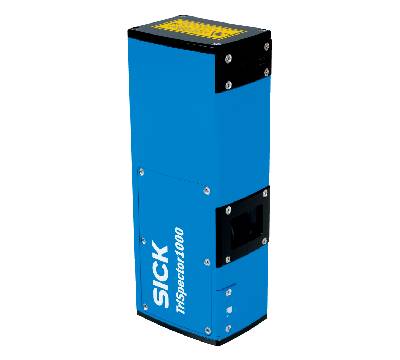

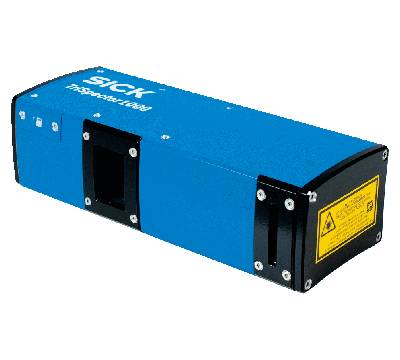

3D machine vision SICK TriSpector1000 / TriSpector1030
V3T12S-MR32A8
Part No.:1060427
Part No.:1060427
Features
Mechanics/electronics
Performance
Interfaces
Ambient data
Classifications
| Task |
Presence inspection Quality inspection Measuring, 3D |
||||
| Technology | 3D line scanning | ||||
| Product category | Configurable | ||||
| Toolkit |
Shape Area detection Blob locator Volume Find plane Fixed plane |
||||
| Working distance | 141 mm ... 541 mm | ||||
| Example field of view | 270 mm x 100 mm | ||||
|
|||||
| Laser class | 2 (IEC 60825-1:2014, EN 60825-1:2014) | ||||
| Factory calibrated | ✔ | ||||
| Width at minimum operating distance | 90 mm | ||||
| Width at maximum operating distance | 330 mm | ||||
| Maximum height range | 400 mm | ||||
| Imaging angle | 65° | ||||
| Offline support | Emulator | ||||
Mechanics/electronics

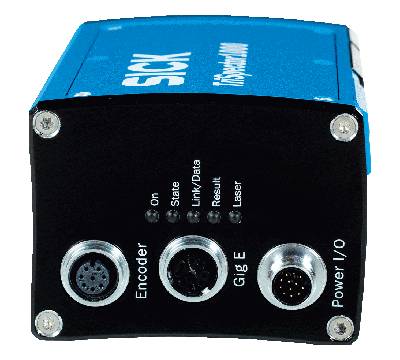

| Connection type |
M12, 12-pin male connector, A-coded (voltage supply, I/O) M12, 8-pin female connector, X-coded (Gigabit Ethernet) M12, 8-pin female connector, A-coded (encoder) |
| Connector material | Nickel plated brass |
| Supply voltage | 24 V DC, ± 20 % |
| Ripple | < 5 Vpp |
| Power consumption | ≤ 11 W |
| Current consumption | < 400 mA, without output load |
| Enclosure rating | IP67 |
| Protection class | III |
| Housing material | Anodized aluminum |
| Window material | PMMA |
| Weight | 1.3 kg |
| Dimensions (L x W x H) | 217 mm x 62 mm x 84 mm |
Performance
| Scan/frame rate | 5,000 3D profiles/s |
| Maximum number of profiles | 2,500 Per image |
| Height resolution | 40 µm ... 280 µm |
| 3D profile resolution | 0.215 mm/px |
Interfaces
|
|||||||
|
|||||||
|
|||||||
| Configuration software | SOPAS ET | ||||||
| Digital input | 3 (non-isolated) | ||||||
| Digital output | 4 (non-isolated) | ||||||
| Encoder interface | RS-422 / TTL (DBS36E-BBCP02048) | ||||||
| Maximum encoder frequency | 300 kHz | ||||||
Ambient data
| Electromagnetic compatibility (EMC) | EN 61000-6-2:2005 / EN 61000-6-3:2007 |
| Shock load | 15 g / 6 ms (EN 60068-2-27) |
| Vibration load | 5 g, 10 Hz ... 150 Hz (EN 60068-2-6) |
| Ambient operating temperature | 0 °C ... +50 °C 1) |
| Storage temperature | –20 °C ... +70 °C 1) |
- 1) Permissible relative air humidity: 0 % ... 90 % (non-condensing).
Classifications
| ECl@ss 5.0 | 27310205 |
| ECl@ss 5.1.4 | 27310205 |
| ECl@ss 6.0 | 27310205 |
| ECl@ss 6.2 | 27310205 |
| ECl@ss 7.0 | 27310205 |
| ECl@ss 8.0 | 27310205 |
| ECl@ss 8.1 | 27310205 |
| ECl@ss 9.0 | 27310205 |
| ECl@ss 10.0 | 27310205 |
| ECl@ss 11.0 | 27310205 |
| ETIM 5.0 | EC001820 |
| ETIM 6.0 | EC001820 |
| ETIM 7.0 | EC001820 |
| ETIM 8.0 | EC001820 |
| UNSPSC 16.0901 | 43211731 |
